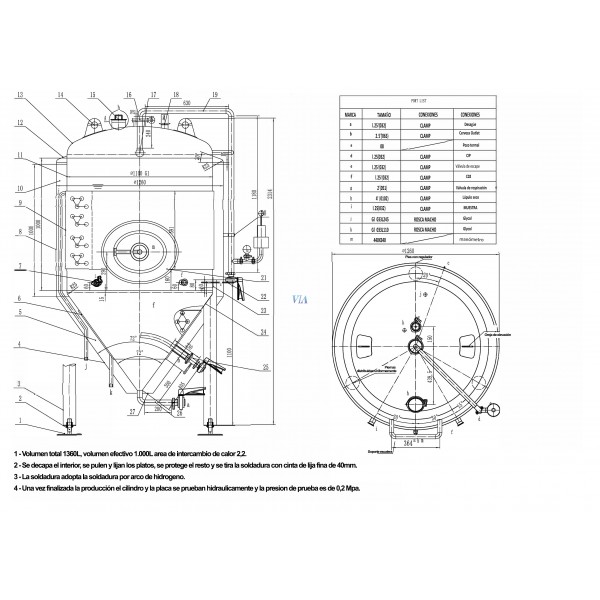

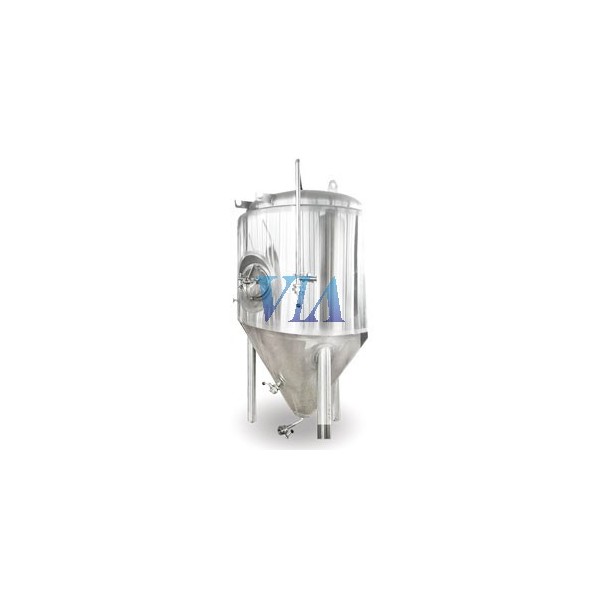

The fermentation tanks use certified stainless steel material. All tanks and cold jackets inspected and pressure tested at 3 times operating pressure. The dimension of the tanks can be designed according to the customer's requirements. The design pressure of the tank is 4.07 Kg and the test pressure is 3.05 Kg.
Cleaning mode: CIP cleaning in place, with rotating spray cleaning ball
1. Thickness of the polypropylene insulating chamber of the inner body: 80 mm.
2. Inner sheet thickness 3 mm. External sheet thickness of 3 mm.
3. 2 BAR adjustable working pressure, 2 BAR design pressure.
4. Lateral access for manhole in 2,000 ltrs.
5. Manhole upper access.
6. Klopper-type domed upper dome with 60º cone.
7. Double cooling jacket made of 1.5 mm thick dimpled sheet, exchange area: 2.8 m²
8. welded on trunk and lower cone. Pressure gauge, mechanical pressure regulating valve, relief valve with triclamp connection, sampler tap, clear finder.
9. Upper and lower cone outlet with butterfly valves.
10. Bimetallic thermometer and input for temperature probe.
11. Rotating cleaning ball with CIP access pipe.
12. All the welding points, both inside and outside are brushed, polished.
13. Adjustable feet in stainless steel.
Accessories
Sample valve, pressure gauge, breather valve, temperature gauge,
Upper mouth with a capacity of 2,000 liters, wash ball, butterfly valves, CIP circuit, lower door, discharge arm, etc.
Capacity: 1,000 liters
Units: 6.
