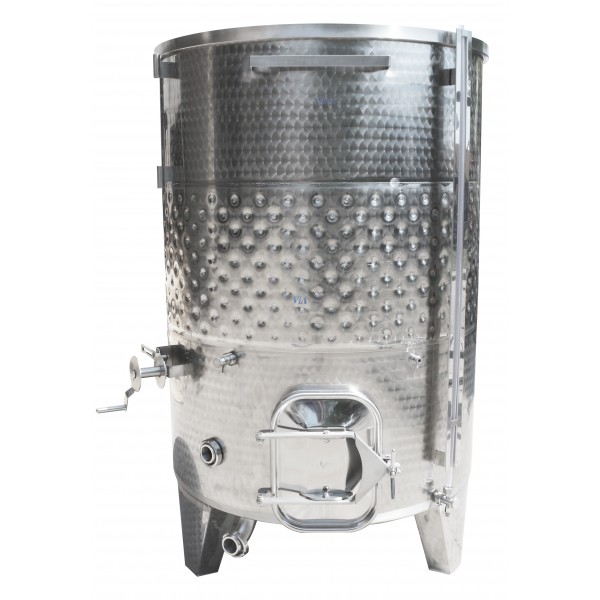

STAINLESS STEEL TANKS ALWAYS FULL 1.100 LITERS INCLINED FLAT BOTTOM 5% FOOD FINISH

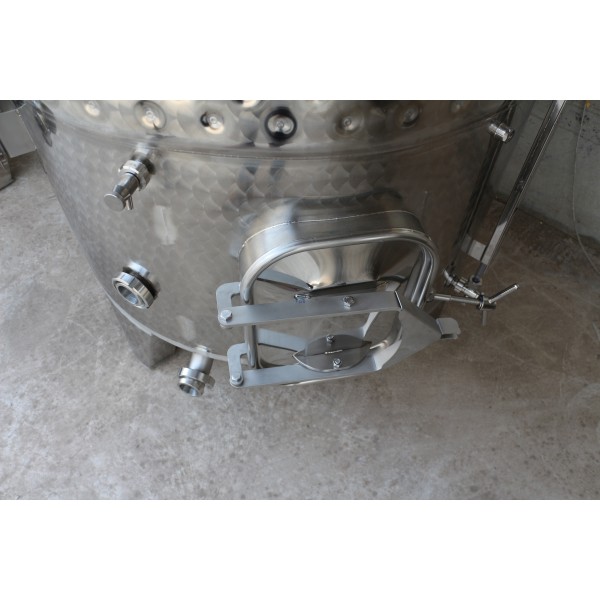

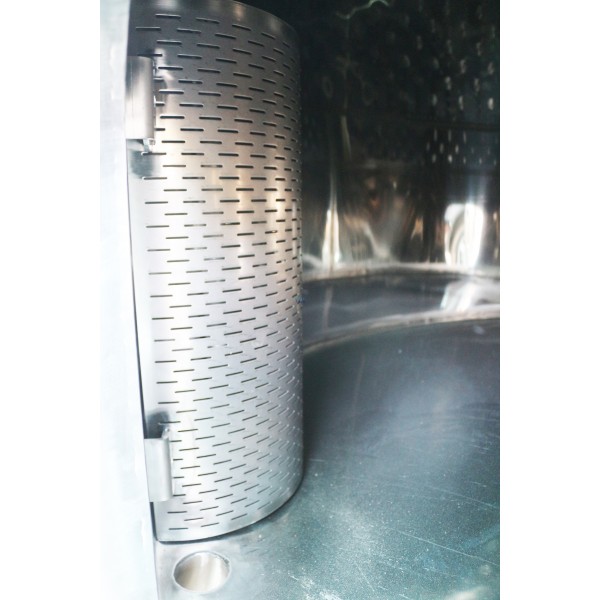

Tanks always full, to avoid an air chamber inside, with a 5% inclined flat bottom, very suitable for vinification with skins or skins and storage. Unlike the models with a conical bottom, once the fermentation and devining are finished, the manhole and the sloping bottom up to the door facilitate the task of extracting the skins. They are also equipped with an internal strainer grid for pumping over. Automated self-emptying tanks with propeller and conical bottoms with guillotine doors (hydraulic or pneumatic) can be manufactured on this line. Optional: adaptation of agitators, inerting, external cleaning tube with internal shower, thermal jackets, clear search... (on request). Construction material all in 304l stainless steel, possibility of construction in 316l on request.
FINISHES: * of the stainless steel plate: polished food-grade interior finish and damask exterior. Body sheet thickness 2mm* TIG welding with inert gas, pickled, passivated, brushed.* Identification and approval: RSPAC 3905561/CAT industry and food product health registration. According to the conformity and the provisions of art.4 5th paragraph of D.L. 01/25/92 num.108 and CEE directive 89/109. Identification plate of manufacture, cubic capacity and identification.

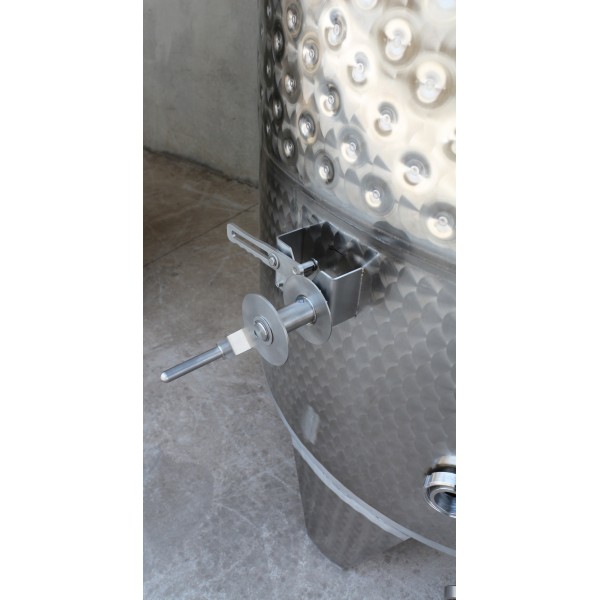

DETAIL *Upper part: Tubular profile with peripheral reinforcement providing the necessary reinforcement. Stainless steel floating cover with semicircular perimeter with double lip for the perfect coupling of the air chamber. Anchors for holding the rope to be able to pull the lid. Double effect safety valve (pressure / depression) in plastic. Support for placing the arm with pulleys. Rotating arm with knob and pulleys for the passage of the rope facilitating the lifting of the lid.

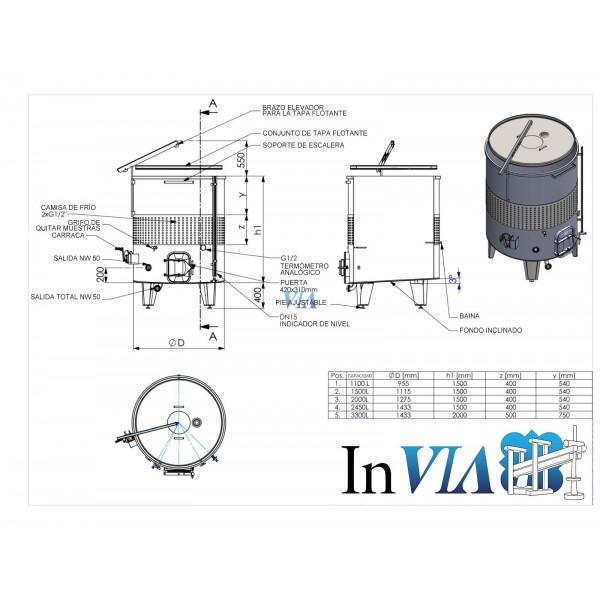

Tank Assembly
