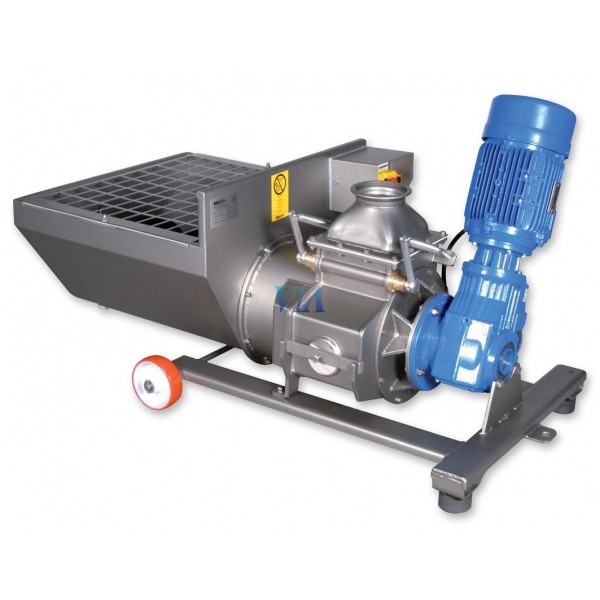

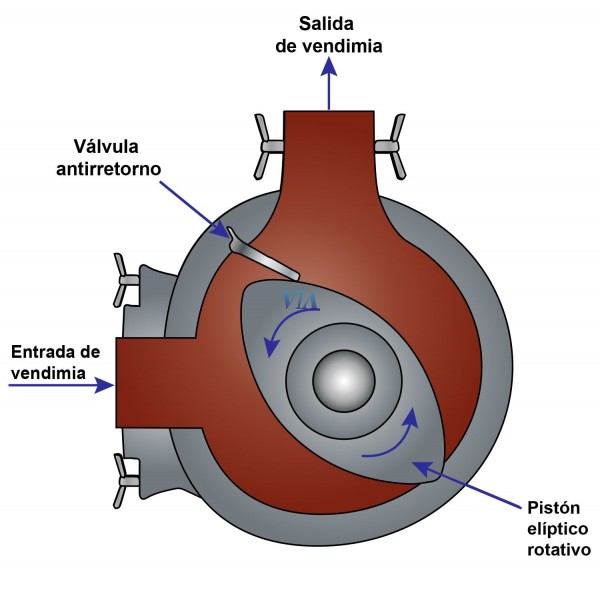

Vintage elliptical piston volumetric pump for whole grapes, crushed, with or without stalk,
destemmed and fermented pasta.Motor to 70 r.p.m., on chassis with wheels in stainless steel, is characterized by ensuring a smooth treatment to the product.
Features
- Motor at 70 R.P.M.
- Mounted on INOX chassis with wheels.
- It is characterized by providing a smooth treatment to the product.
- Operating pressure of up to 8 meters.
- Stainless steel trolley for easy movement.
- Support device on the floor on anti-vibration foot.

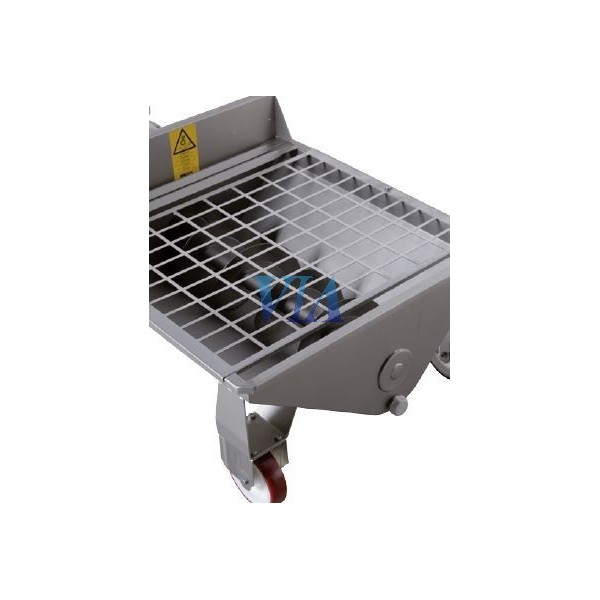

- Adjustable hopper height for easy loading
- of the product.
- Weight 80 kg.
Optional
Vessel of compensation.
| Model | Flow | Engine | Height discharge | Diameter mouth | Dimensions |
| V10 | 2-5 ton/h | 2,5 Hp TF | 25/4 m | 80 mm | 1300x700x700x400 |
| V15 | 5-10 ton/h | 5,5 Hp TF | 35/6 m | 100 mm | 1300x700x700x400 |
| V18 | 7-15 ton/h | 7,5 Hp TF | 40/6m | 120 mm | 1300x700x700x400 |
| V20 | 12-30 ton/h | 7,5 Hp TF | 60/8m | 120 mm | 1600x750x700x500 |
