TRUNCATED CONICAL 10000 LTR

21 023,75 €

Add to cart



IVA incluido

DESTITC10000

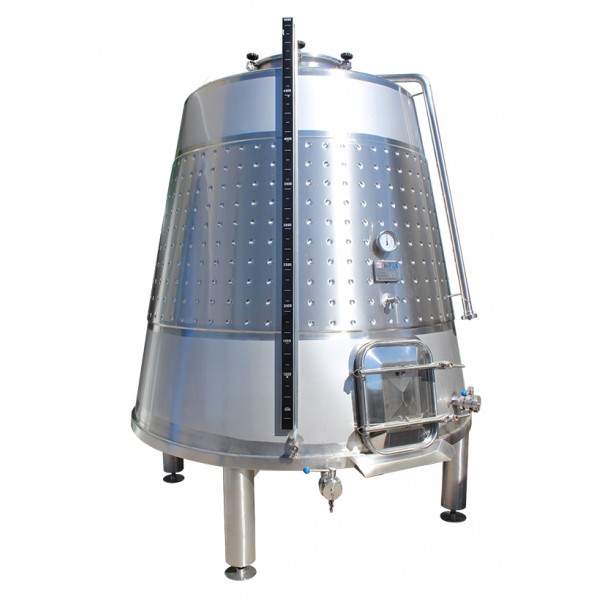

Fermentation tanks with flat bottom inclined 5%. The frustoconical tanks have advantages in the production of red wine to facilitate the breakage of the fur hat that is formed in winemaking.

The "hat" does not rise to the top, so the liquid stays on top and soaks it. It is a good option to do delestage. Maceration is more intense. In general, these are small capacity tanks. Advantages: natural pigeage, better extraction of phenolic compounds, minimal heat loss, facilitation of preferential cold maceration, uniform temperature due to a good distribution of the peripheral exchanger, reduction in energy consumption, ease of cleaning, better aesthetics.

Material of construction all in stainless steel 304l, possibility of construction in 316l on request.

FINISHES: * stainless steel sheet: interior and exterior matte finish.

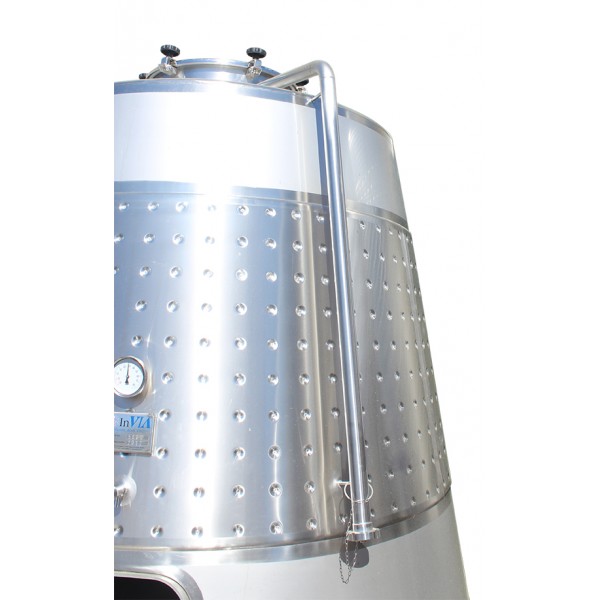

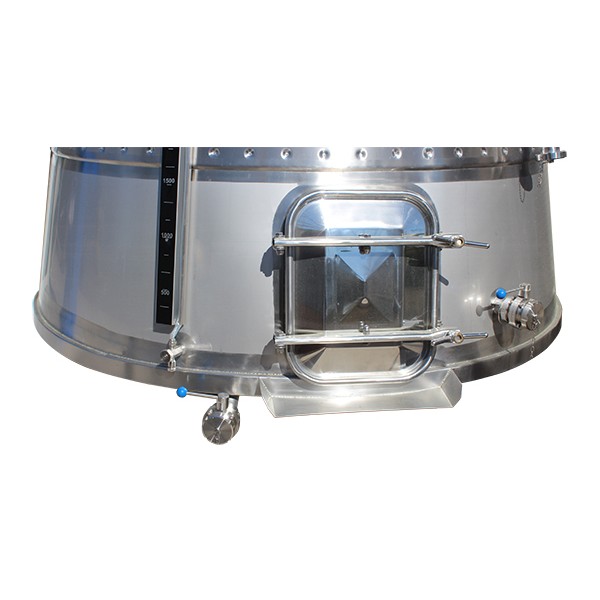

DETAIL * Top: 45º conical dome centered, 400mm diameter centered access manhole with gasket, cover, steering wheels. Double acting safety valve (pressure / depression) in 304l stainless steel. Ears for loading and unloading * Cylinder: complete level with 304l stainless steel tap gas thread with plastic hose, with calibrated profile of general capacity. Nameplate and identification. Tap 1/2 "takes samples in stainless steel. Rectangular lower mouth with external opening, complete with gasket, closing flywheel and bolts. Front thermometer holder sheath. Surrounding heat exchange jacket with 1" gas fitting. Rear thread with plug for PT100 probe. Traced tube. Removable inner strainer grid with external outlet butterfly valve with NW 50 male to facilitate the reassembly and retention of the skins.

More details

May contain traces of machining fluid and undesirable odors.
A good cleaning is necessary to avoid migrations.
Smell the inside of the taps.

* TIG welds with inert gas, coated, passivated, brushed. * Identification and approval: Sanitary registration of industries and food products RSPAC 3905561 / CAT. In accordance with the provisions of article 4, 5th paragraph of D.L. 01/25/92 No. 108 and CEE directive 89/109. Identification plate of manufacture, cubic capacity and identification

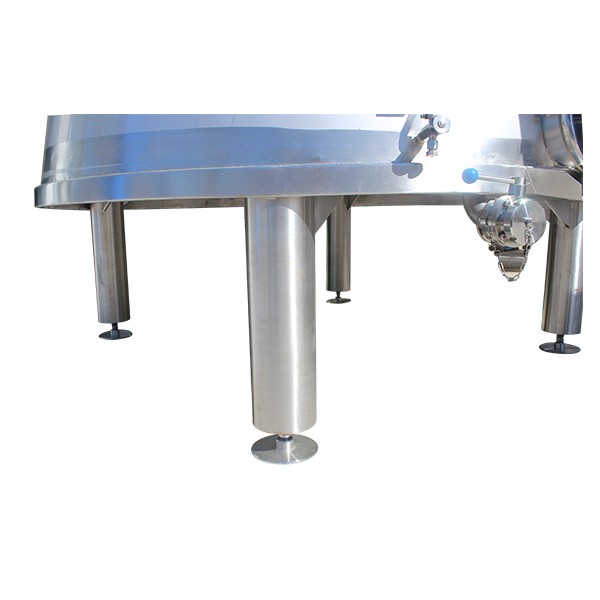

* Bottom: Flat bottom inclined 5% with a slope towards the front to facilitate the deviation and removal of the skins. Total emptying outlet with elbow next to the lower mouth at the bottom 304 stainless steel butterfly valve NW 50 male outlet. Cylindrical feet with nut and adjustable bolts for perfect alignment (+/- 60mm). With stainless steel floor support plates diameter 140mm.
