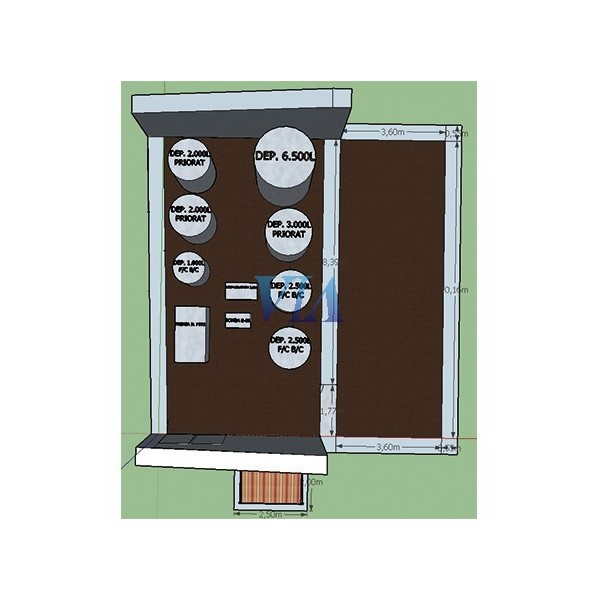

CELLAR FOR RED PRODUCTS APPROXIMATE 60,000 BOTTLES YEAR

GUIDANCE OFFER. THE PRICE IS NECESSARY AN UPDATE, ASK FOR IT IF YOU NEED IT.

Production approximately 60,000 bottles.

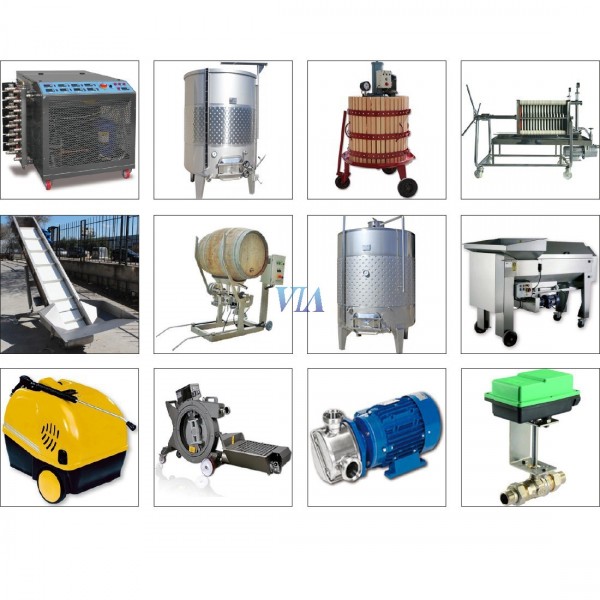

It includes:

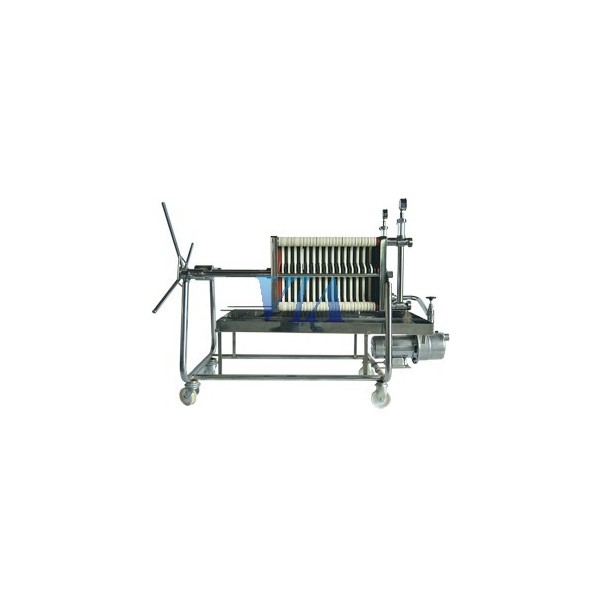

- Economic filter 40x40 20 plates.

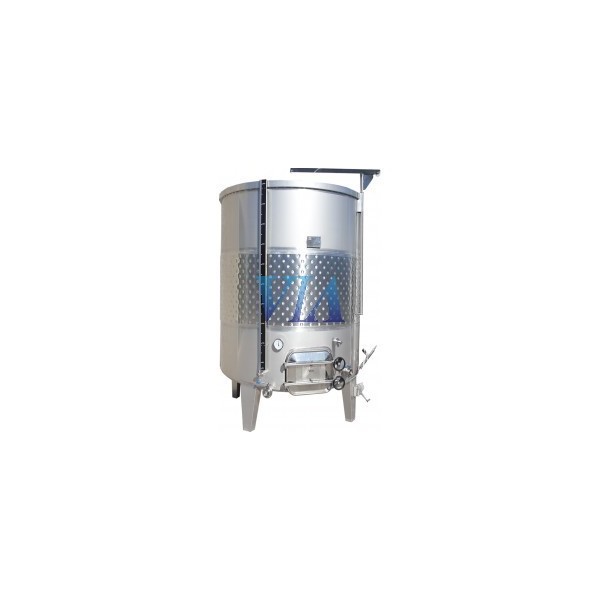

- 2 stainless steel tanks 5,000 Ltrs. Always full flat bottom inclined 5%. Includes cap, crane and kit always full Diameter 1.750mm and Height 2.500mm.

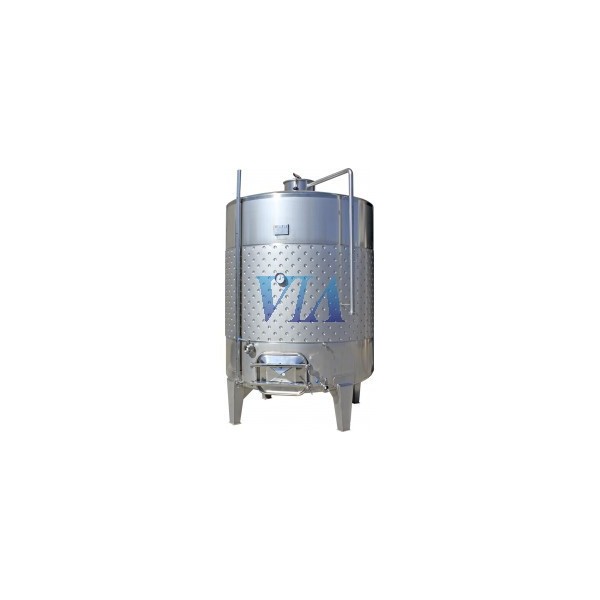

- Deposit 5,000 Ltrs. Standar flat bottom inclined 5%. Diameter 1.700mm and Height 3.078mm.

- 3 stainless steel tanks 3.000 Ltrs. Always full flat bottom inclined 5%. Includes cap, crane and kit always full. Diameter 1,400mm and height 2,900mm.

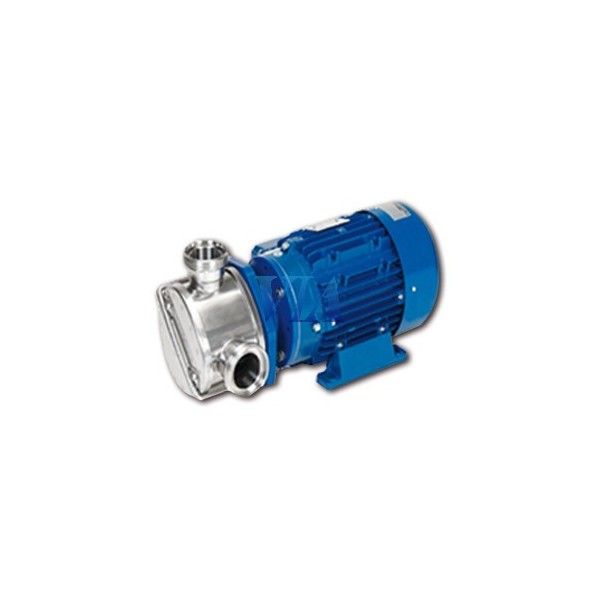

- Pump Minor 40 2 speeds 1,4 / 2,4 CV. 350/700 RPM.

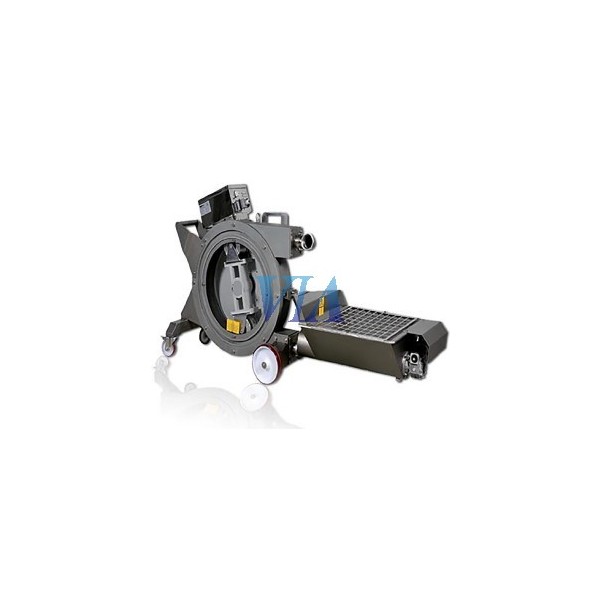

- Peristaltic pump AS 100 4HP 140 RPM.

- Stainless steel hopper AS 100.

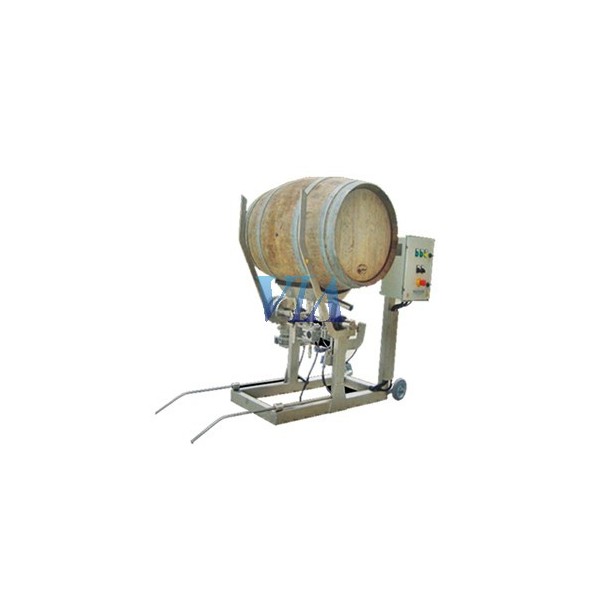

- Lava manual stainless steel barrels.

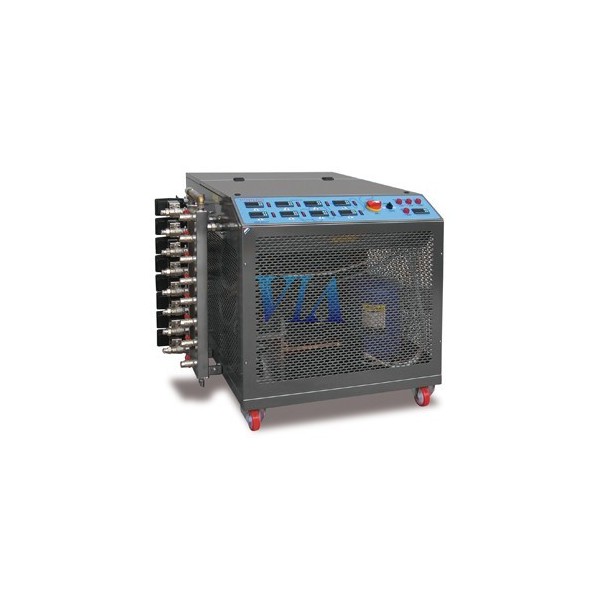

- Cooling equipment W11 with resistance.

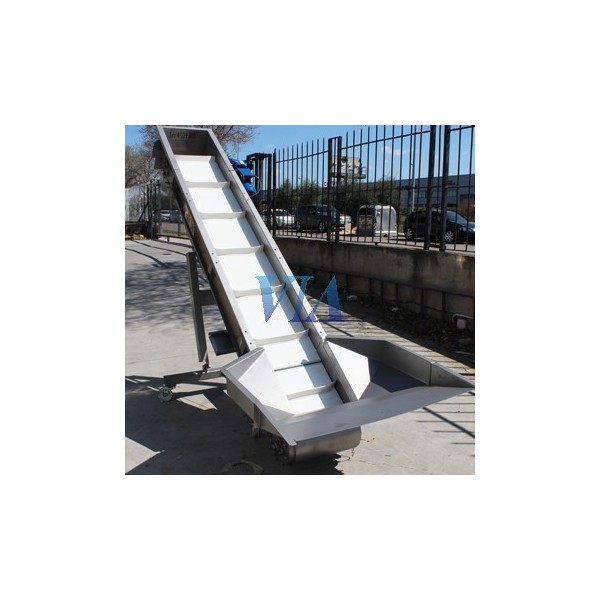

- Elevator stainless steel 2,500 x 400.

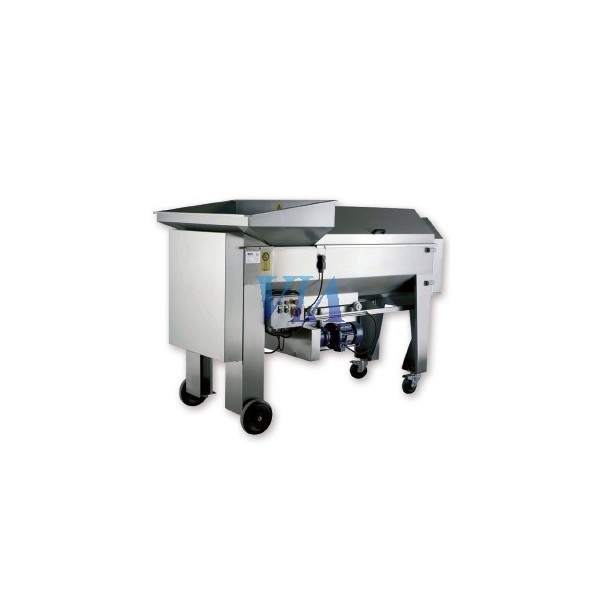

- Crusher - Destemmer MOR40. Production of 400 - 8,000 kg. Manufactured completely in stainless steel.

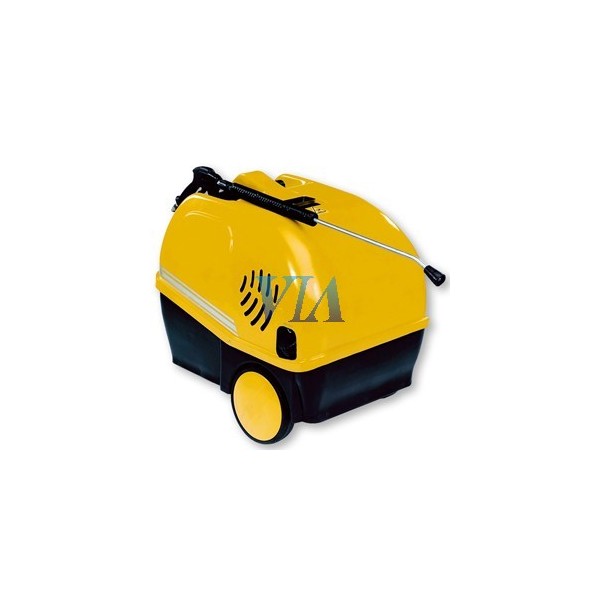

- Hot water cleaner K110 Hobby, 110 BAR 660 L / H 3 H.P. 100 ° C.

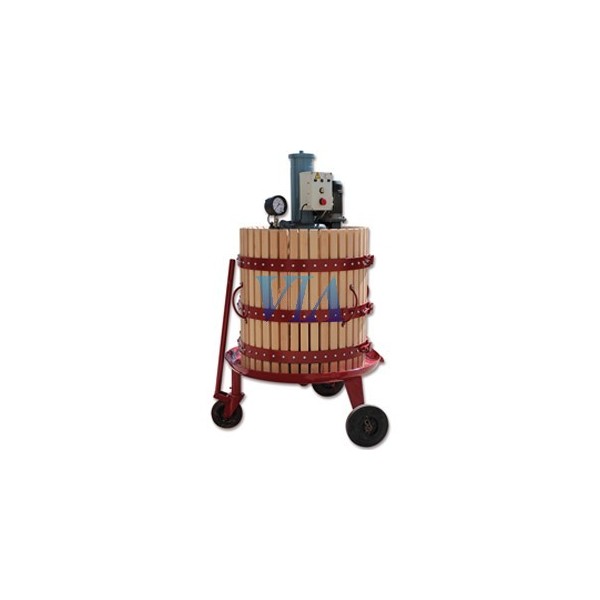

- Motorized hydraulic press 80x05 with collection tank in carbon steel. With car and wooden cage.

Produces 475 Kg approximately. It has a pressure gauge for automatic pressure regulation.

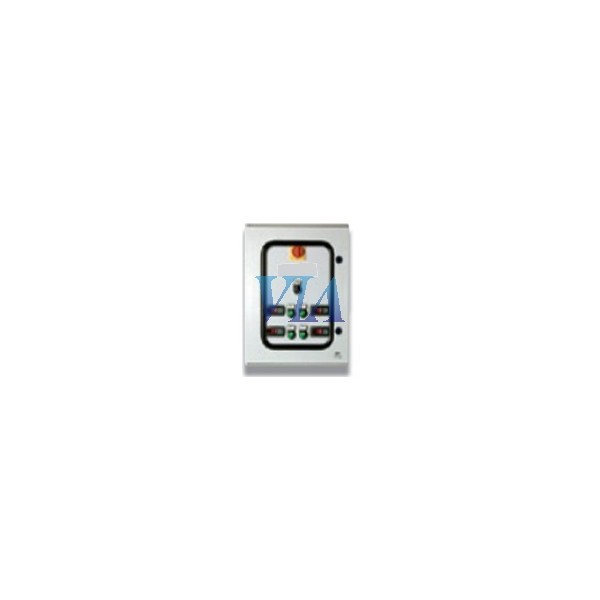

- Standard control panel 8 Display for W3 / 5 / 9R.

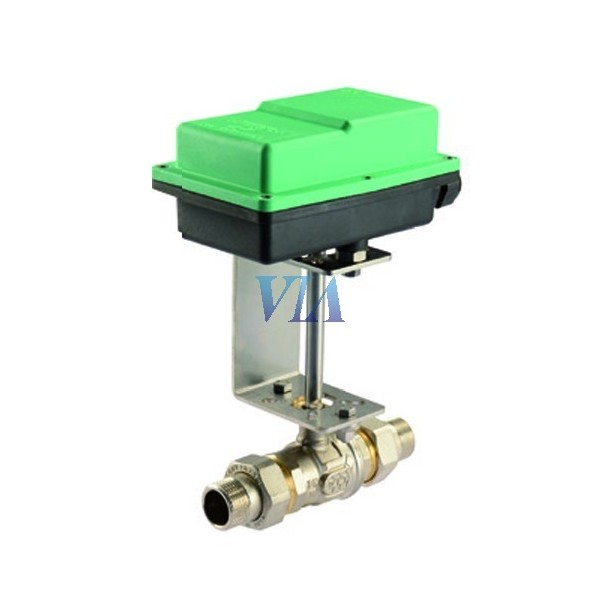

-7 Solenoid valve 3/4 "24V Anti-condensation W11 / 13/16/20/25/31/39.

- Various accessories pipe for installation of refrigeration line.
