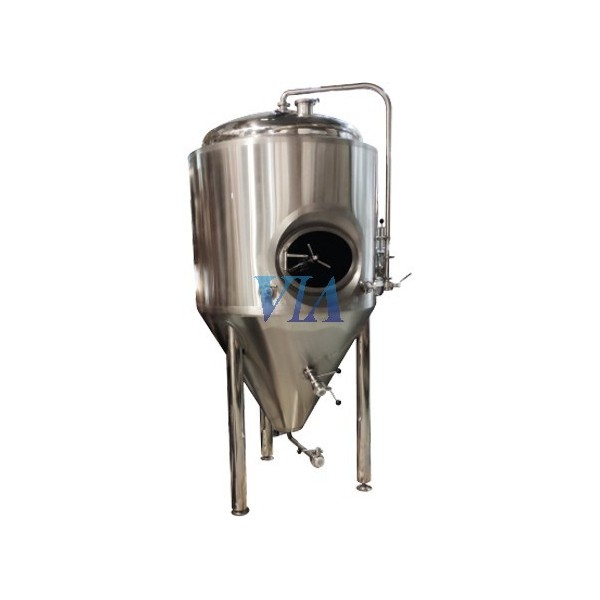

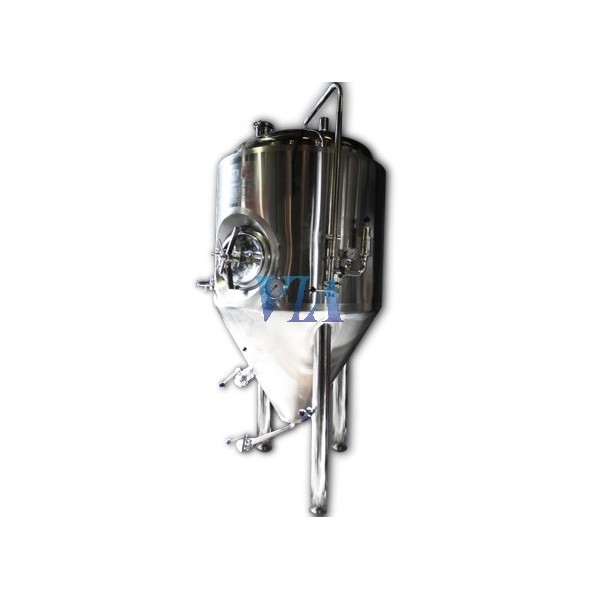

Made of 304 stainless steel, fine satin finish inside and outside, polished gloss.
It is used interchangeably for storage in the case of wine, beer, oil ... or fermentation for beer and wine ...
Features
- Thickness of the insulating chamber of the inner body: 80 mm.
- Thickness of internal sheet 3 mm. External sheet thickness 2 mm.
- Adjustable working pressure of 1.5 BAR, design pressure 2 BAR.

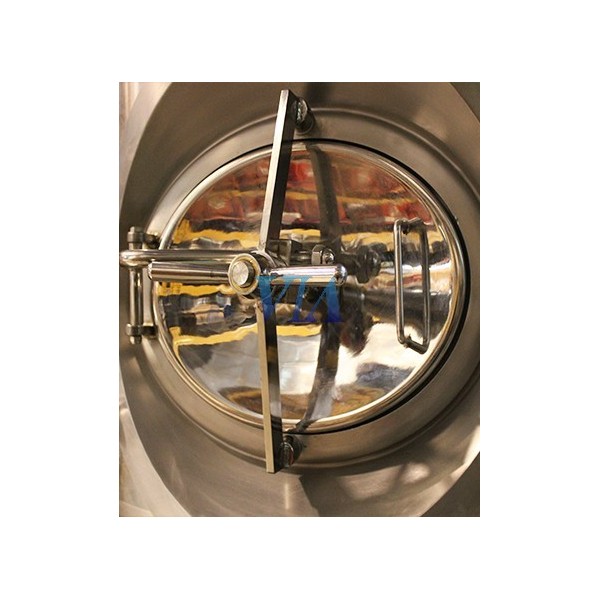

- Side access for man step.
- 60 º cone.

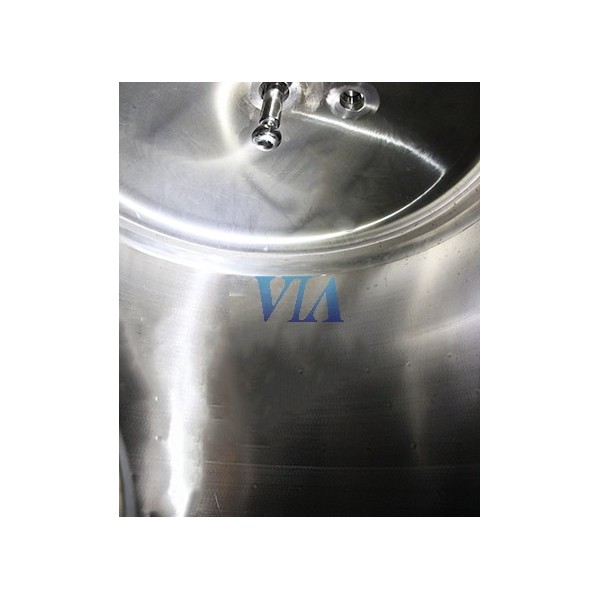

- Vaulted upper dome type Klopper.

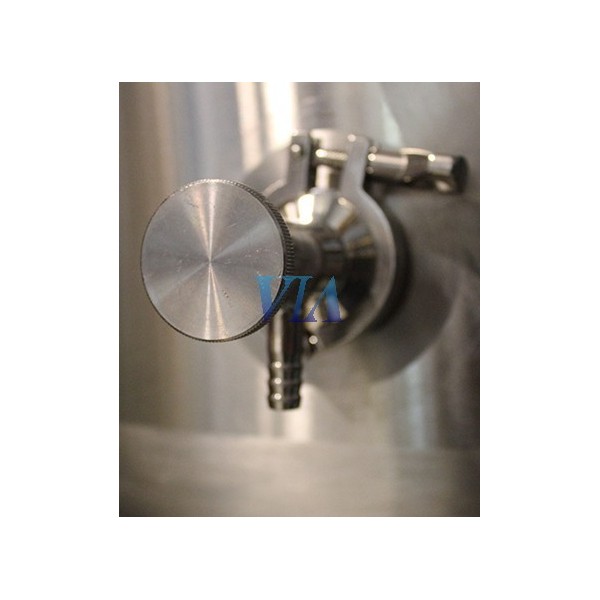

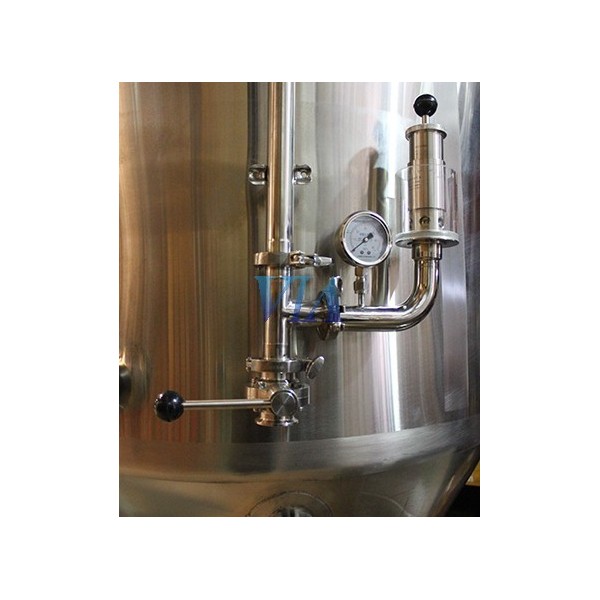

- Double dimple sheet cooling jacket welded on trunk and lower cone. Pressure gauge, mechanical pressure regulating valve, relief valve with triclamp connection, sampling tap.

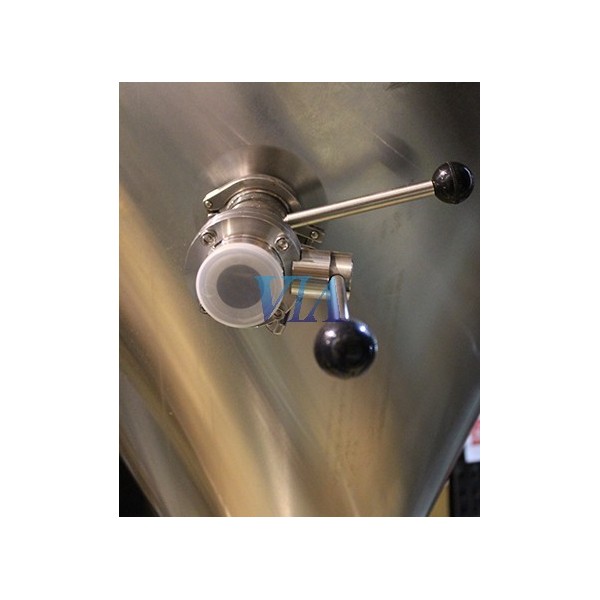

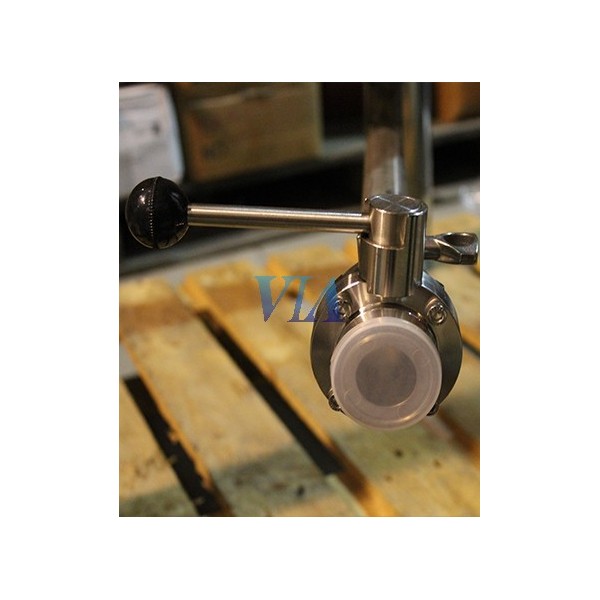

- Top and bottom outlet of the cone with butterfly valves.

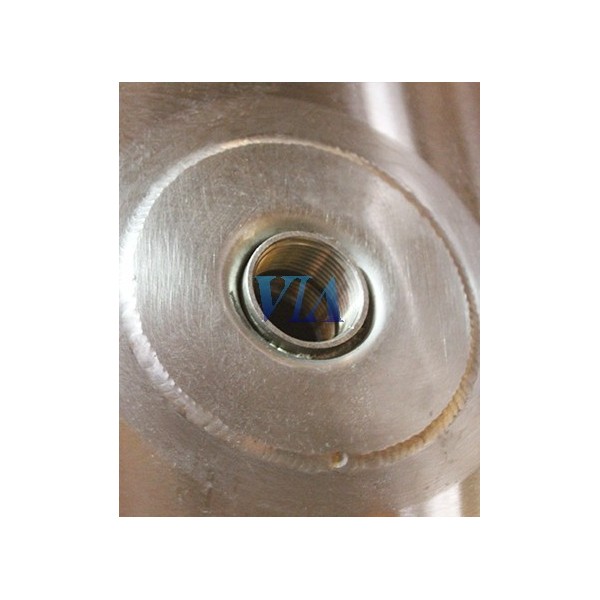

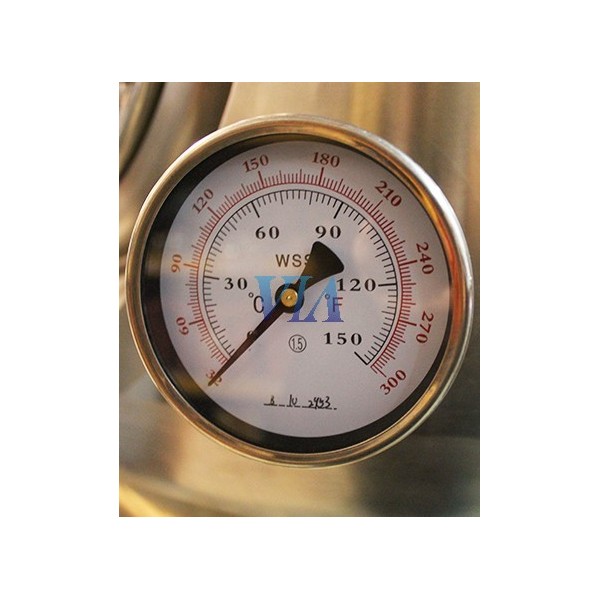

- Bimetallic thermometer and inlet for temperature probe.
- Rotating cleaning ball with CIP access pipe.
- All welding points, both interior and exterior are brushed, polished.

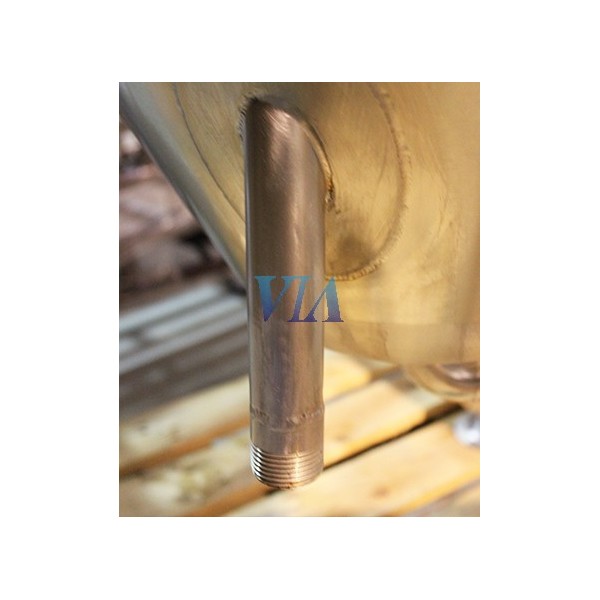

- Feet in stainless steel and adjustable.
- Measures: Diam. 1260 mm Height 2500 mm.
May contain traces of machining fluid and undesirable odors.
A good cleaning is necessary to avoid migrations.
Smell the inside of the taps.
