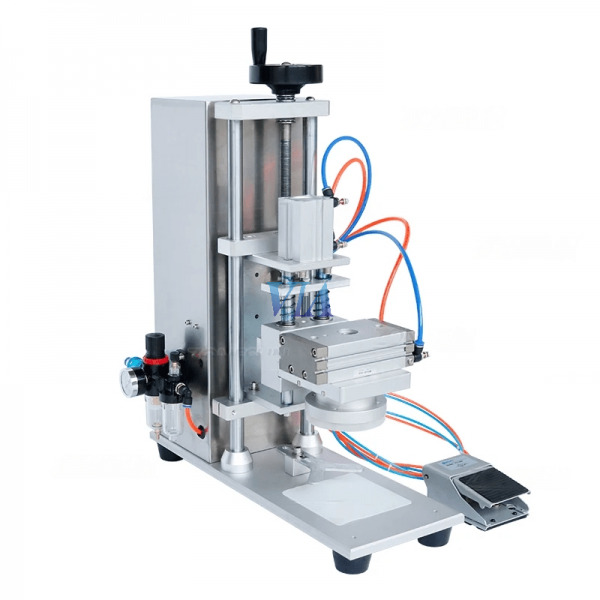

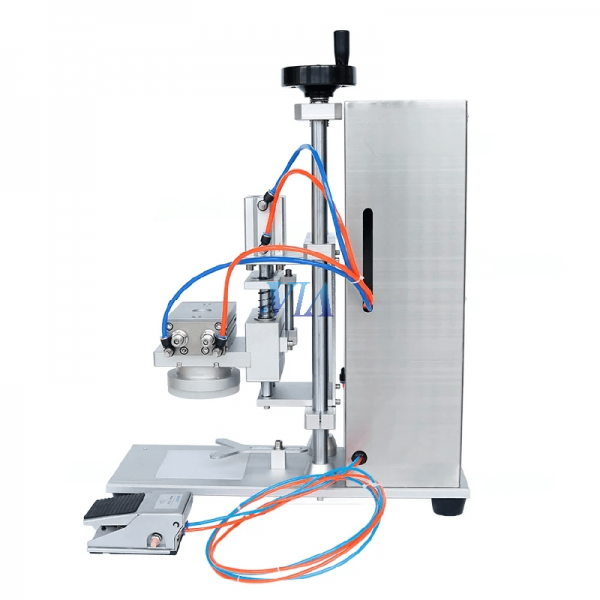

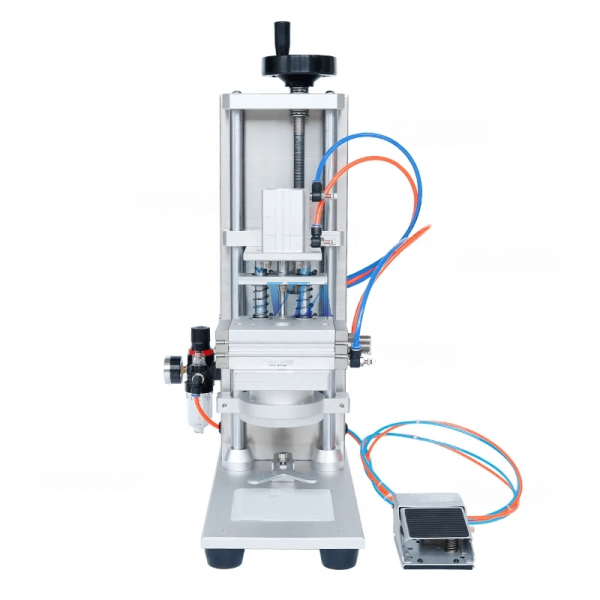

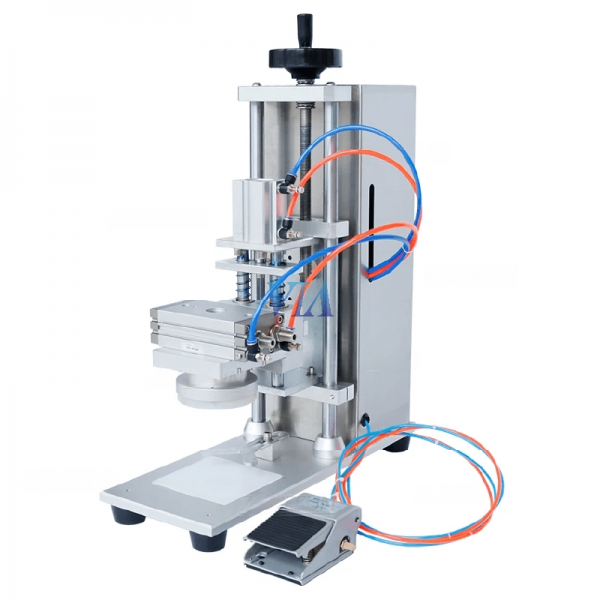

Designed to easily close plastic, twist and lock screw caps and screw caps.
Height adjustment can be made in the system that supports the pneumatic piston. In this way, the machine is very versatile and can close bottles up to 350 mm high.
Production rate: 500/600 bottles / hour.
Weight: 30 kg.
Consumption of approximately 150 air / min.
Air pressure 3-5-7 bar.
Power 0.15 Hp 0.35 Hp 0.53 Hp.
Rotation speed 500 RPM 565 rpm 630 RPM.
Maximum torque 4.2 Nm 8.4 Nm 11 Nm.
The machine adapts to different cover sizes by easily changing the magnetic chuck. Supplied with a mandrel size. For each different diameter, it is necessary to purchase an additional mandrel.
Robust and reliable, this equipment allows the operator to close around 600 jars or bottles per hour.

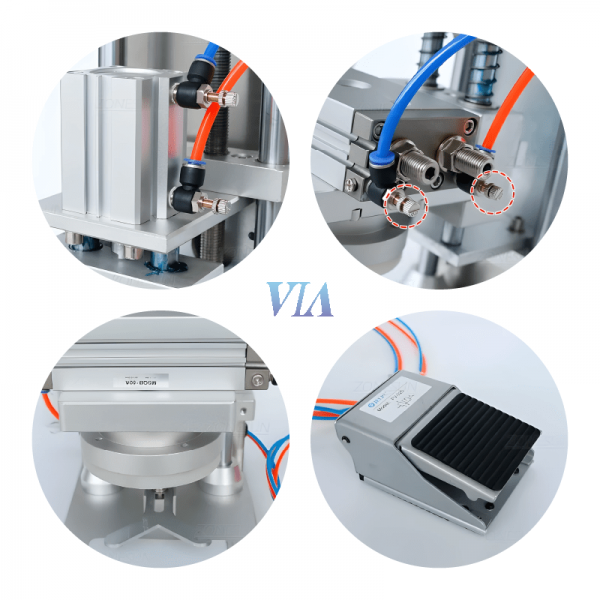

The operator places the cap on the magnetic chuck and presses the buttons on both sides of the machine base. The closing head descends towards the lid, closing it while a pneumatic system locks the container preventing it from turning.
Possibility of working with both miniature bottles and large capacity PET or glass bottles (up to 380 mm high).
