Self-priming pump for clean and turbid liquids, even in larger steps for transporting grapes.
Operation by means of pressure exerted on a rubber tube, without contact of the product with the pumping member.
Suitable for the soft and delicate transfer of liquids in general, whole grapes, destemmed, crushed and fermented grapes.
Self-aspirant of depth.
Dry running
Investment of the flow.
Equipped with speed variator and automatic pressure switch.

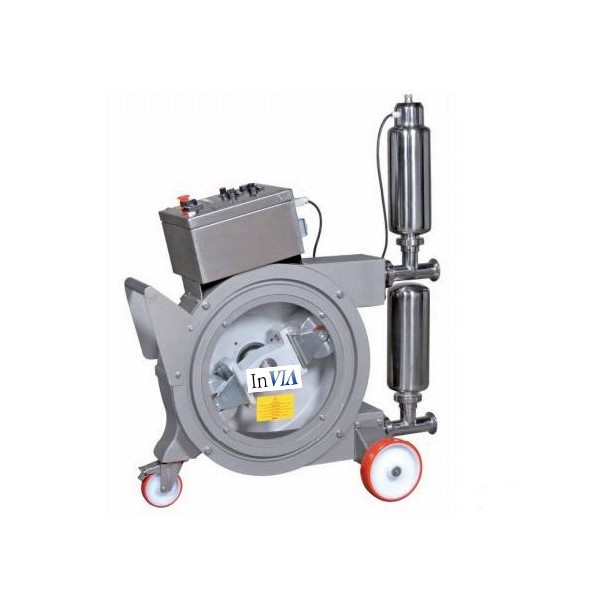

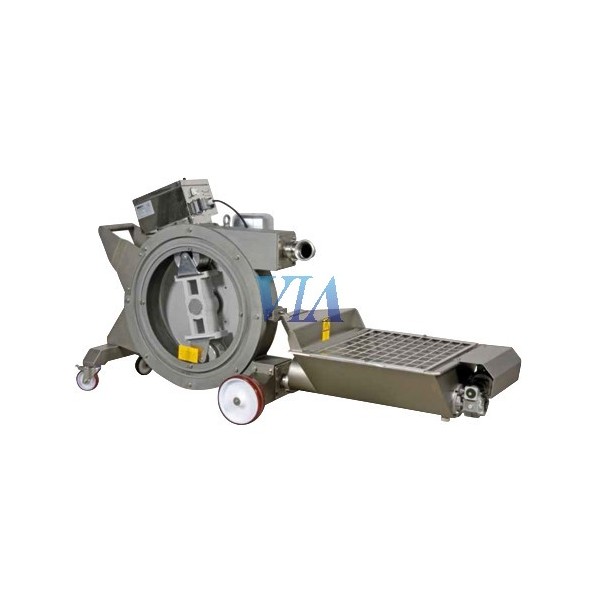

The hopper is included in the price, can be used with hopper or without it if it is used without hopper the pump comes equipped with pulsation dampers (see photos).
- Self-priming depth.
- Dry running
- Investment of the flow.
- Speed variator.
- Automatic pressure switch
- Accessories: Hopper with endless, automatic by-pass.
| Model | Engine | RPM | Flow | Mouth diameter |
| AS20 | 1HP/380V | 20-90 | 5-20 hl/h | 40 mm |
| AS50 | 2HP/380V | 7-65 | 5-50hl/h | 40 mm |
| AS100 | 4HP/380V | 7-60 | 10-100 hl/h | 50 mm |
| AS200 | 5,5HP/380V | 7-60 | 20-200hl/h | 80 mm |
| AS300 | 10HP/380V | 7-60 | 60-300hl/h | 100 mm |
| AS100 with stainless steel hopper | 4+1HP/380V | 7-60 | 4-7 ton/h | 80 mm |
| AS200 with stainless steel hopper | 5,5+11HP/380V | 7-60 | 10-14 ton/h | 100 mm |
| AS300 with stainless steel hopper | 10+11HP/380V | 7-60 | 13-18 ton/h | 100 mm |
