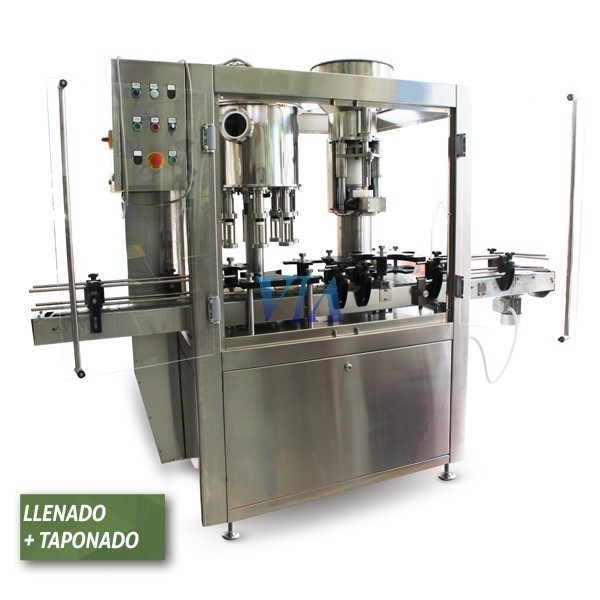

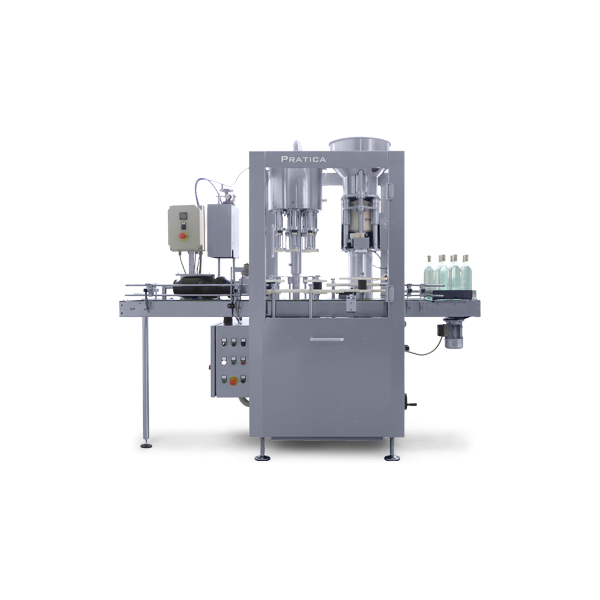

They combine the phases of bottling and capping in a single machine.
For the filling of bottles of wine, champagne, beer, oil or other liquids with similar characteristics of density and viscosity.
Capped with cork stopper, cork stopper for cava bottles with morion, crown cap, pilfer cap.
Constructed in INOX 304 steel, automated system, safety protections complying with CE regulations, easy cleaning and maintenance equipment.
FEATURES

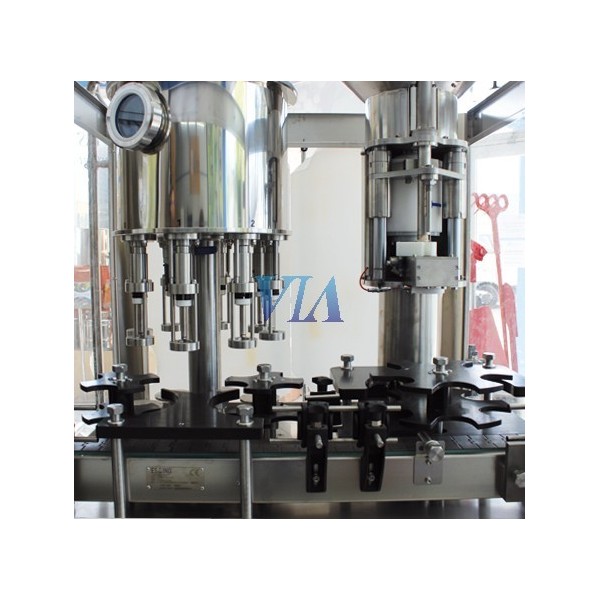

- Filler 6 pipes by gravity of 800 bottles / hour, 600 liters / hour maximum.
- Capper of 1 head, satin cork stopper for 1,700 bottles / hour.
- Mechanical speed variator.
- Lifting cylinder for mechanical bottle height.
- Inlet and outlet conveyor prepared for connection to labeling.
- Inert gas injector.

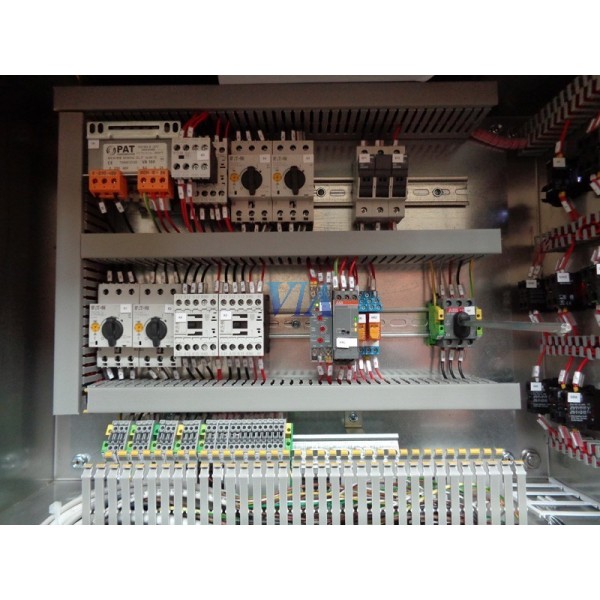

- Electric control panel.
- Machine manufactured in accordance with CE regulations.
- Motorized transporter, capsule distributor, capsule straightening and labeling.
- Side guides in stainless steel Ø12mm, adjustable in width, to allow the passage of bottles up to 110mm Ø and 390mm high.
- The machine is mounted on wheels.
- A square collection table is mounted at the end of the conveyor.

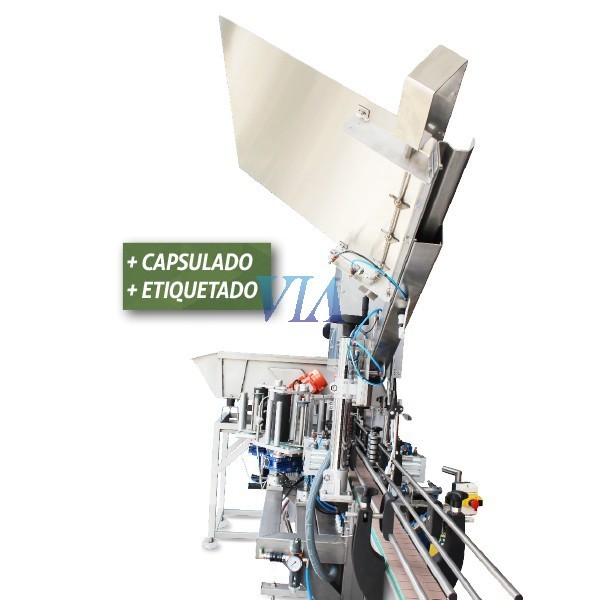

DISTRIBUTOR CAPSULES
- An inclined table supplying capsules of 500mm by 430 mm.
- Diameter of 30 mm ± 2 mm capsules.
- Length of capsules from 30 to 55 mm.
- Ejection of the capsules by double torch adjustable in width and length.
- Automatic centering and fastening of the neck of the bottles in the positioning of the capsule.
SMOOTH OF CAPSULES
- 1 straightening knife 2800 rev / minute.
- The smoothing head comes with two chromed guide shafts Ø 25 mm.
- Smoothing of capsules in gollets of Ø 30 mm ± 2mm.
- Regulation of the speed of rise and fall of the heads by means of air limiters.

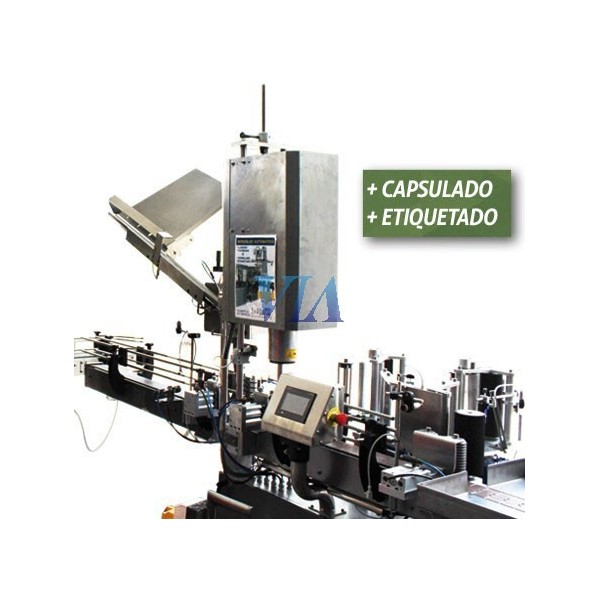

LABELED
- 1 dispenser for labels.
- 1 dispenser for a second label or against.
- Maximum labeling height 190 mm.
