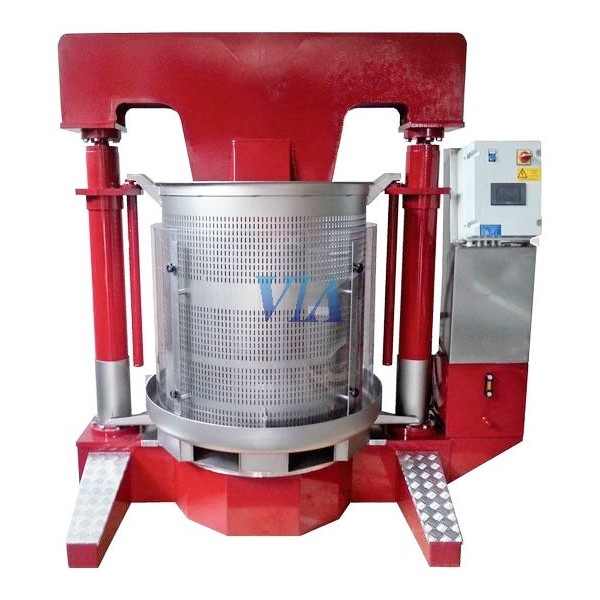

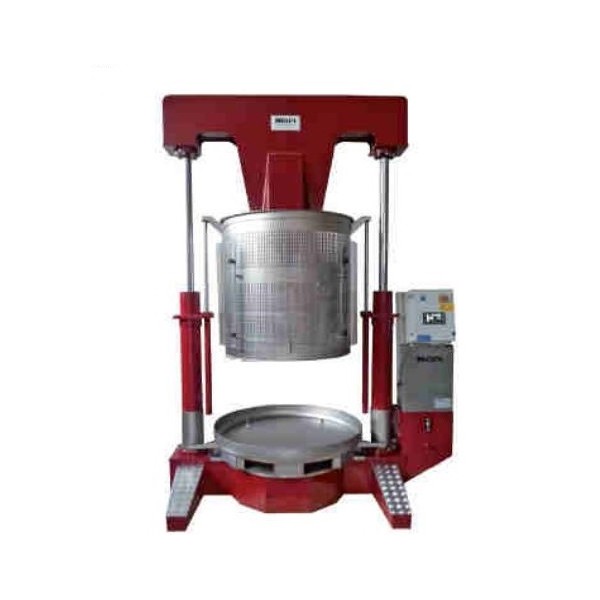

Designed to improve the pressing quality of both delicate white grapes and red grapes, reducing the time of each cycle.
Traditional and easy-to-use system, selecting the desired program the press acts automatically.
Structure in painted steel with high mechanical resistance, two double-acting pistons in chrome-plated steel, stainless steel coated pressure plate, two-speed hydraulic control unit with double pump, 4.0 kW 400 V motor, palletizable stainless steel tray and stainless cage. Electrical system with PLC (Programmable Logic Controller) for programming times and pressures of up to 8 cycles from 20 to 180 bar for the desired times.
TECHNICAL DATA
- CAGE: 950mm x 1000mm (A)
- PISTONS: 2 x 130 mm
- PRESSURE: 180 bar
- CHARGE PRESSURE: 40 t
- POWER: 4.0 kW 400 V
- DIMENSIONS: 220 cm x 140 cm x 215 cm (A)
