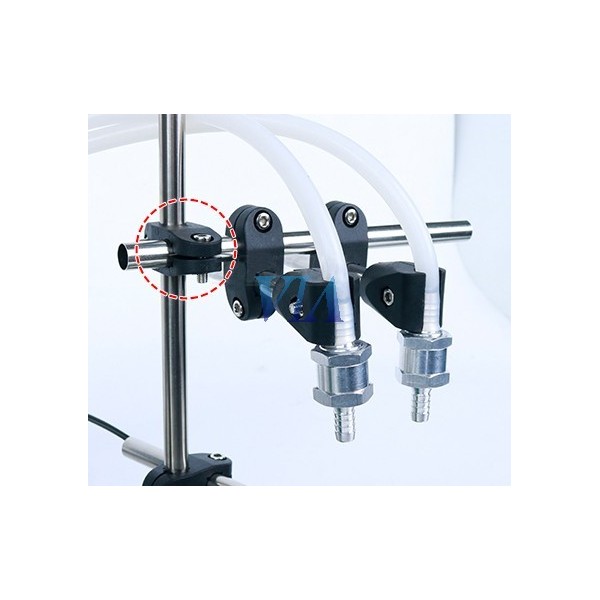

1. The two nozzles can be controlled separately, easy to operate.

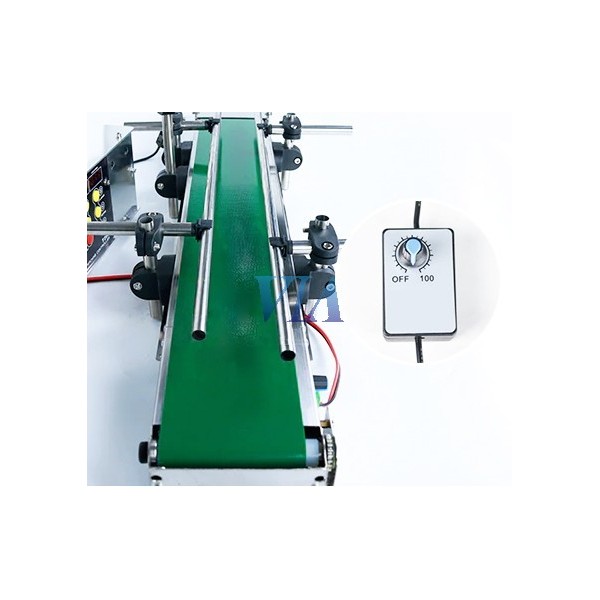

2. With waterproof conveyor belt, it can guarantee the cleanliness of production.

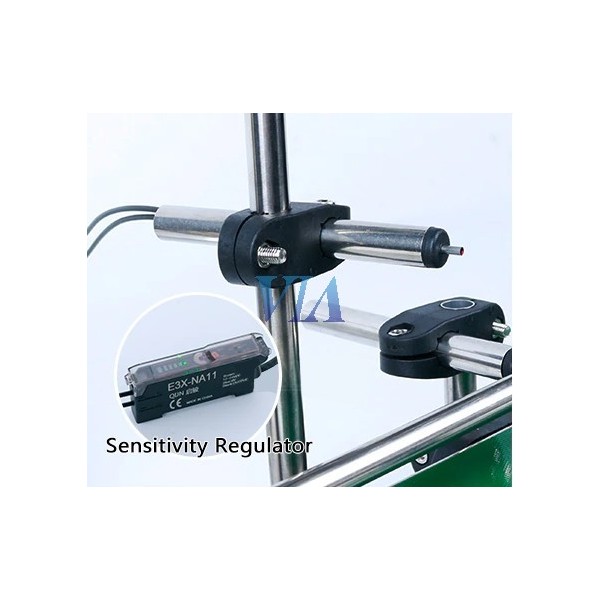

3. intelligent photoelectric sensor, it can fill bottles automatically, saving labor cost.

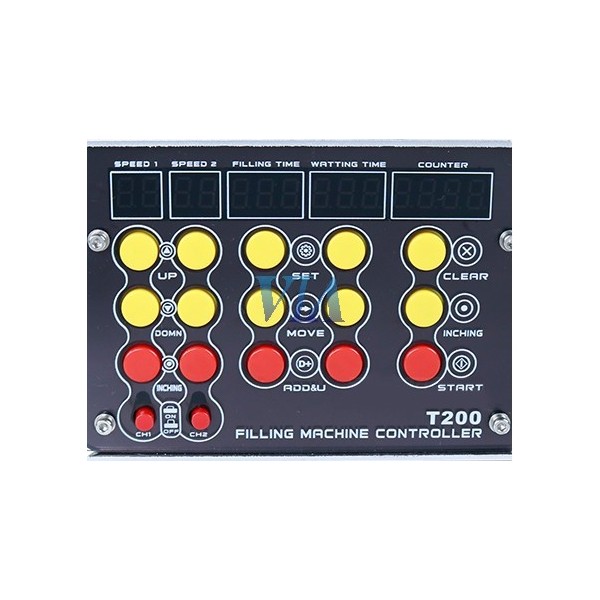

4. With digital control panel, it is easy to control the machine.
5. With collecting tray, which helps sort bottles after filling, improving work efficiency.
Characteristic
Voltage meter | 220V 50-60Hz |
Filling range | 5-500mL |
maximum flow rate | 3l/min (water based) |
filling speed | 1-99 (adjustable) |
filling time | 0,1-999s |
Applicable bottle size | Diameter: 0-100mm Altura: 0-300mm |
Filling nozzle diameter | OD 9mm (you can choose 6mm or 3.4mm) |
hose length | 0,8 m (inlet)/1.2m (outlet) |
hose diameter | 6mm(ID)/10mm(OD) |
conveyor size | 600mm (length) x 100mm (width) |
liquid temperature | Max. 60 ℃ |
Conveyer belt | Waterproof |
Memory function out of power | Available |
machine size | Approximately 295mm * 155mm * 105mm |
Net weight | 5,28 kg |
package size | 670mm x 150mm x 100mm (conveyer belt) 350x200x160mm (host machine) |
Gross weight | 7kg |
