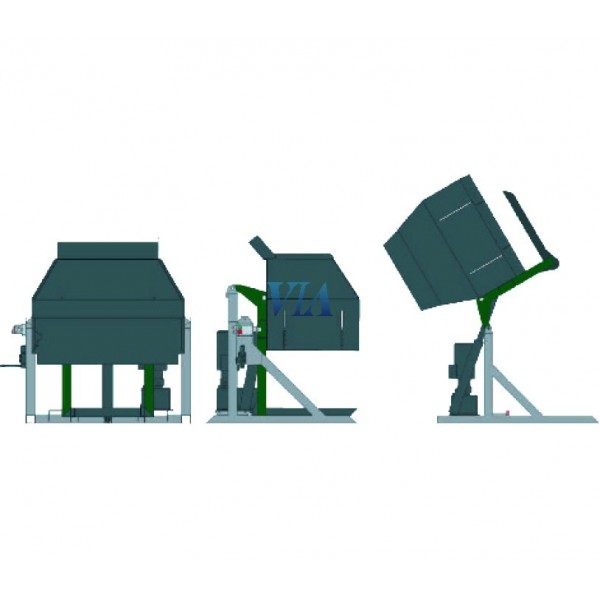

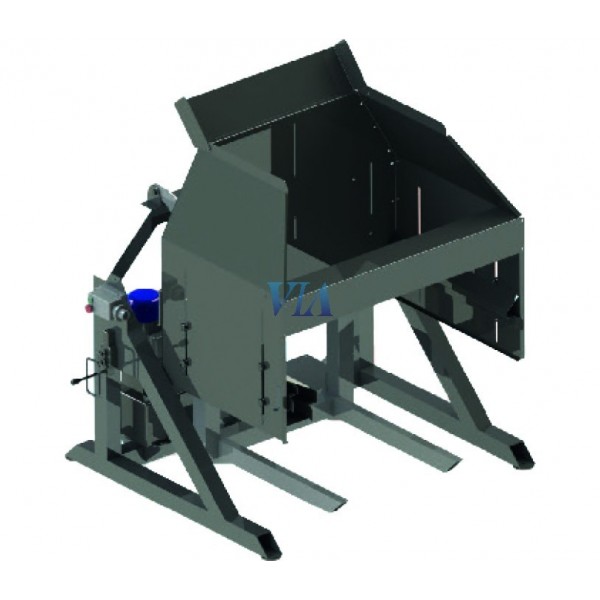

The box elevator/turner is used to empty the olives into the oil mill hopper. The box is positioned above the elevator/turner by means of a pallet truck. The equipment is equipped with a hydraulic control unit that drives a piston; the piston raises the box until it is completely empty.
- Capacity: 0.3 m³
- Maximum load: 1500kg
- Overall length: 1160mm
- Overall Width: 820mm
- Overall height: 825mm
- Pouring edge height: 726 mm
- Measurements of the crimps: 200 x 80 mm
- Distance between crimps for forks: 225 mm
- Material: sheet steel
- Material thickness: 3mm
