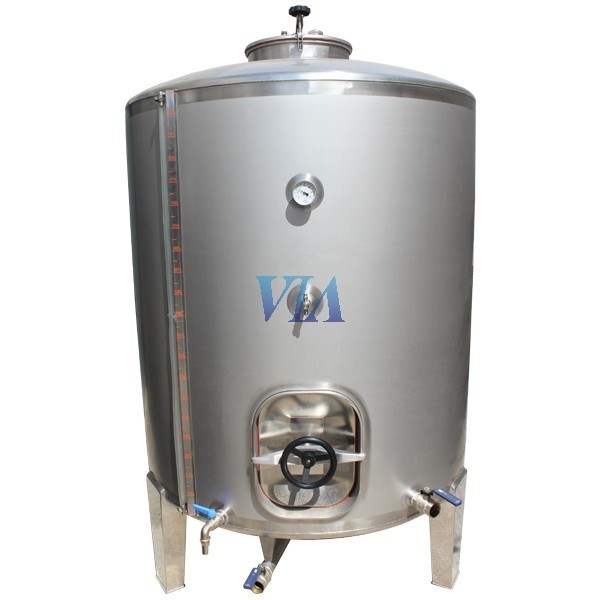

Stainless steel tanks, CONICAL FUND for storage, also for winemaking, fermentation can be carried out with difficulty in removing skins.
Optional: adaptation of agitators, inerting, cleaning tube outdoor with indoor shower, thermal shirts, look for clear ... (on request).
Material of construction all in stainless steel 304l, possibility of construction in 316l on request.
FINISHES: * of the stainless steel sheet: interior and exterior matt finish. * TIG welds with inert gas, coated, passivated, brushed. * Identification and approval: Sanitary registration for industries and food products RSPAC 3905561 / CAT. In accordance with the provisions of article 4, 5th paragraph of D.L. 01/25/92 No. 108 and CEE directive 89/109. Identification plate for manufacturing, cubing and identification.

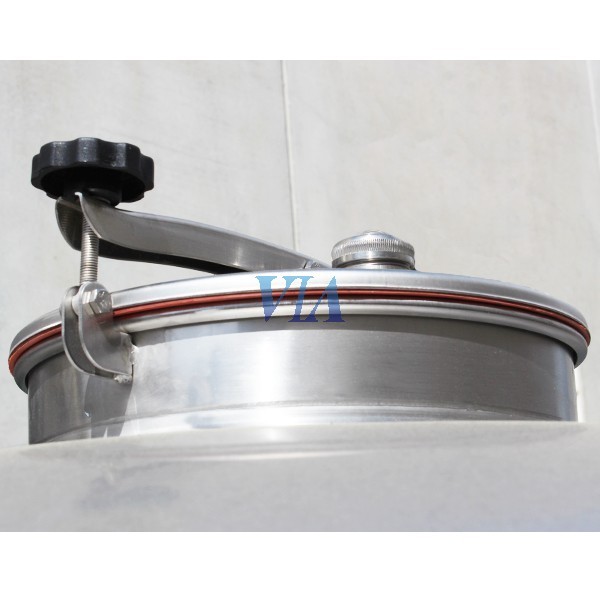

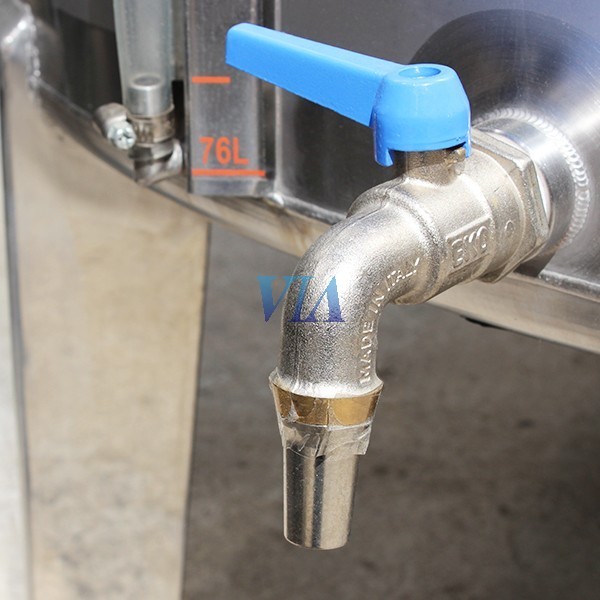

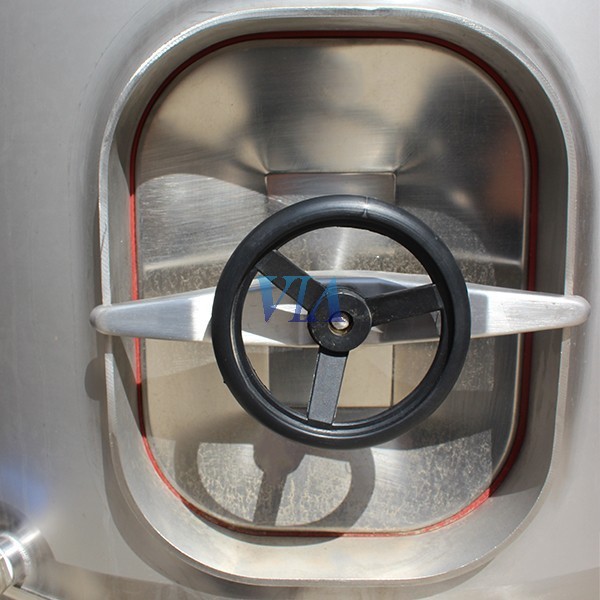

DETAIL * Top: 45º conical dome centered, 400mm diameter centered access manhole with gasket, cover, flywheel and opening system with arm and rotating bolt. Double acting safety valve (pressure / depression) in 304l stainless steel. * Cylinder: complete level with 304l stainless steel tap with gas hose with plastic hose or methacrylate tube, with calibrated profile of general capacity. Nameplate and identification. Supports stairs from 3,000l. Tap takes samples in stainless steel. Lower mouth in model M diameter 400mm model D rectangular with external opening, complete with gasket, closing flywheel and bolts. 304 stainless steel butterfly valve on the NW 50 male outlet at the bottom.

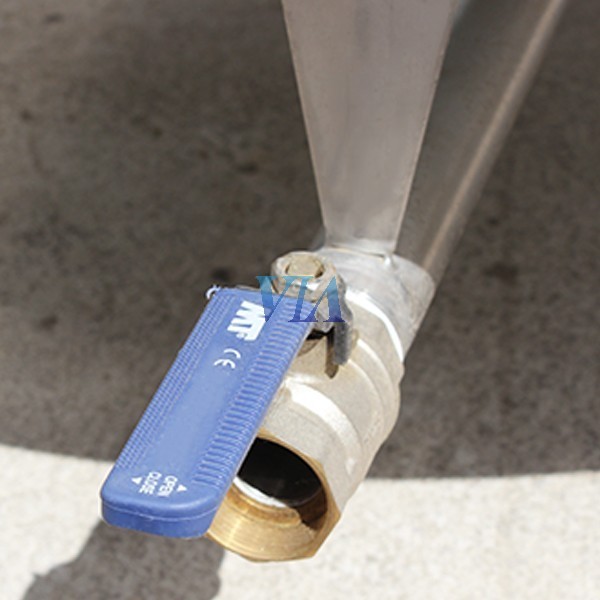

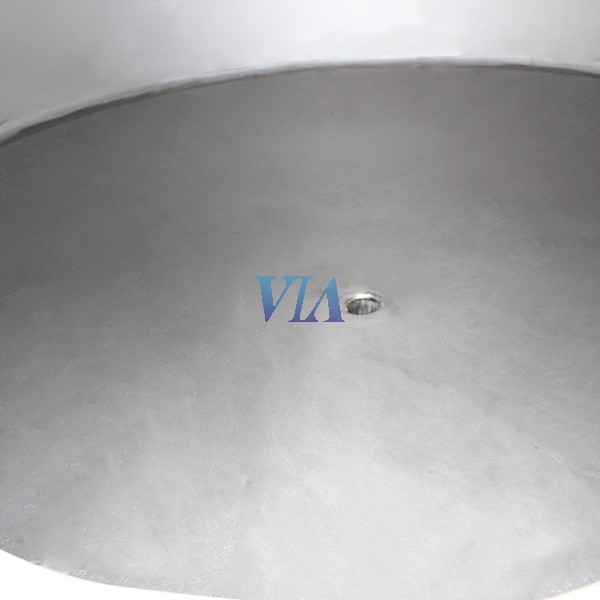

* Bottom: 45º centered conical. Exit centered on the bottom of the cone with a total drain connection and a 304 stainless steel butterfly valve, NW 50 male outlet. Tapered feet with adjustable nut and bolts for perfect alignment (+/- 60mm). With stainless steel floor support plates diameter 140mm.
Capacity: 1.000 ltrs.
Diameter aprox: 1.030 mm.
Total height approximate: 1.610 mm.
May contain traces of machining fluid and undesirable odors.
A good cleaning is necessary to avoid migrations.
Smell the inside of the taps.
