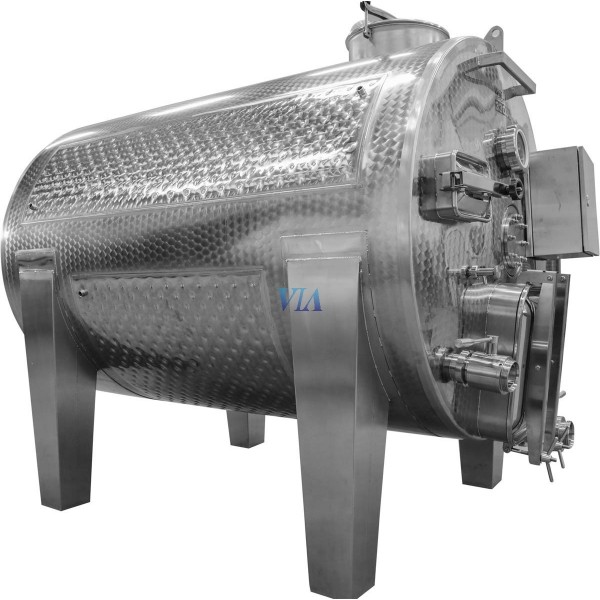

The horizontal maceration fermenter allows a high extraction of colors and aromas from the grape skins.

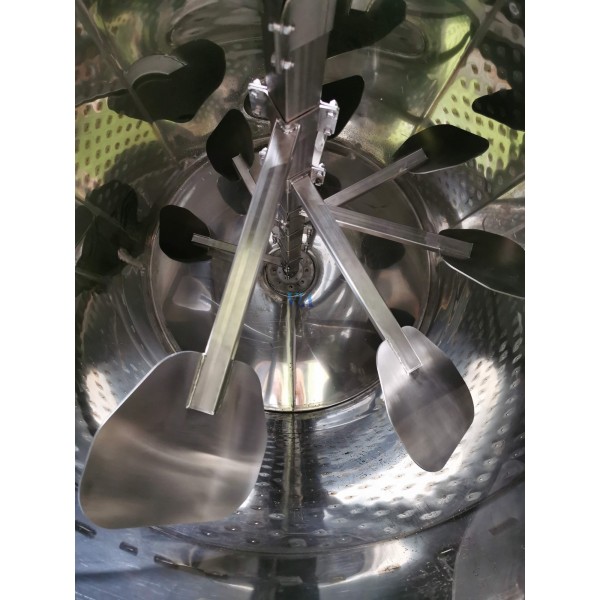

An eight-blade motor mixer is mounted to the fermentor, which slowly and effectively rotates the mash.
On the electronic control panel you can set the speed of the agitator (from 3 to 5 rpm), the time intervals and the mixing direction. The agitator rotates in both directions and thus allows easy discharge.
- Welded legs
- 3 × cooling jacket
- Eight-blade motorized blender
- Three-phase motor with viator

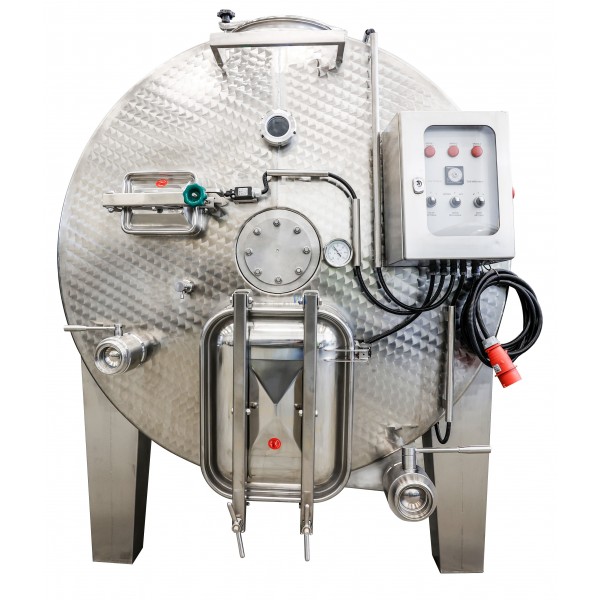

- Electronic control panel
- Total outlet – DN80 ball valve
- Partial outlet - DN65 ball valve
- Rectangular access door 530 × 400 mm
- Rectangular access door 225 × 175 mm
- Manhole cover Ø385 mm + DN50 connection with vent valve
- peephole DN80
- sample tap DN15
- 6 × ½” fitting for cooling/heating medium
- ladder support
- adjustable feet
| Capacity | Long | Height | Nº legs |
| 3.300 ltrs | 2.700 mm | 2.100 mm | 4 |
| 5.000 ltrs | 2.800 mm | 2.600 mm | 4 |
