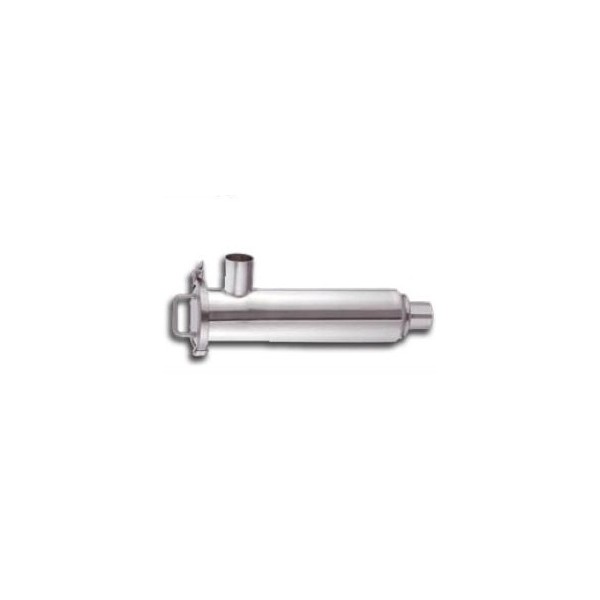

SANITARY FILTRATION

Filter built entirely in stainless steel, designed for sanitary filtration.

Strainer filter to retain large particles that can clog pumps or other equipment.

Different sieves available in the different possible filtration microns.

They are used to filter out particles that can damage pumps or other equipment.

CHARACTERISTICS AND USE

It has a product inlet and outlet.

The sieve is fixed inside the body, retaining all the particles that have a size greater than or equal to the mesh pitch.

- Cleaning the screen without removing the filter.

Low pressure drop.

Standard connections in DIN 11850.

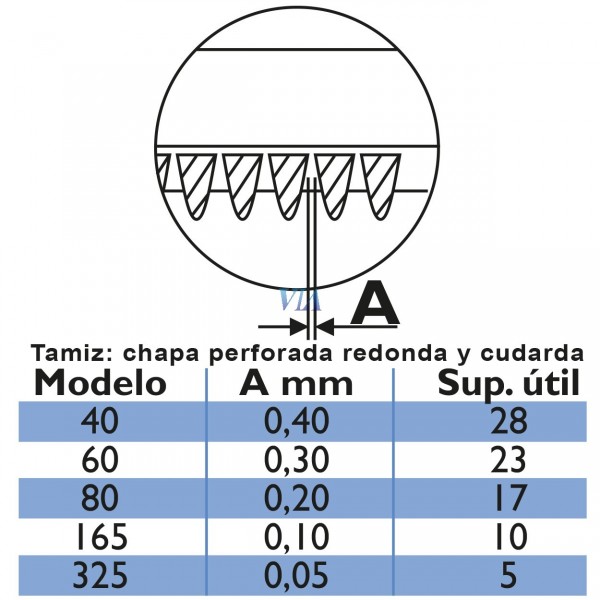

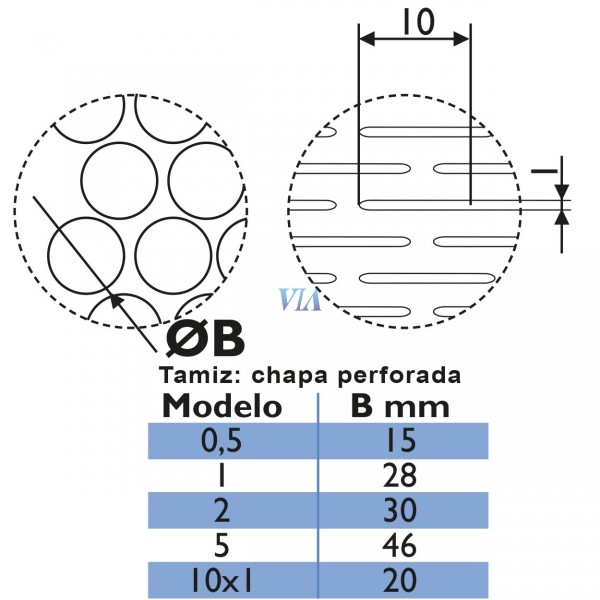

Sieve with circular drill (Ø 0.5 mm to Ø 5 mm) or longitudinal drill (10 x 1 mm).

Body: AISI 316L.

Seals: EPDM according to FDA 117.2600.

Internal surface finish: Ra ≤ 0.8 µm.

External surface finish: Mirror polished.

Straight inlet and outlet filter option.
