VIASPG HOSE INTERIOR DIAMETER 150 EXTERIOR 170 mm

156,09 €

Add to cart



IVA incluido

MANSPG150

PRICE BY METER.

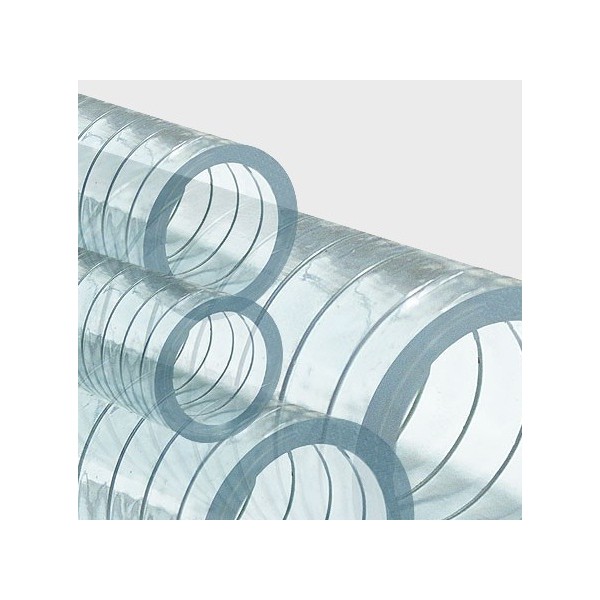

Flexible PVC hose atoxica. It complies with the EC norm 1935/2004 and the EU regulation
10/2011.

  • Hose reinforced inside by a rigid metallic spiral made of galvanized steel.
  • The wall of the hose is smooth inside which prevents the formation of sediment and facilitates sterilization work.
  • Flexible PVC hose atoxica. It complies with the EC standard 1935/2004 and the EU 10/2011 regulation.
  • Hose reinforced inside by a rigid metallic spiral made of galvanized steel.
  • The wall of the hose is smooth inside which prevents the formation of sediment and facilitates sterilization work.

APPLICATIONS

Transfer of wine, food products.

Interior diameterThick
wall		Pressure
service		Pressure
break
20mm3,5mm10 bar.30 bar.
25mm4mm10 bar.30 bar.
30mm4,2mm9 bar.27 bar.
35mm4,3mm9 bar.27 bar.
40mm4,4mm9 bar.27 bar.
45mm4,9mm9 bar.27 bar.
50mm5,4mm7 bar.21 bar.
60mm6mm6 bar.18 bar.
65mm6,1mm5 bar.15 bar.
70mm6,1mm5 bar.15 bar.
80mm6,5mm4 bar.12 bar.
90mm7mm4 bar.12 bar.
100mm7mm3 bar. 9 bar.
125mm8mm3 bar.9 bar.
150mm10mm2,5 bar.7,5 bar.
