PRICE BY METER.

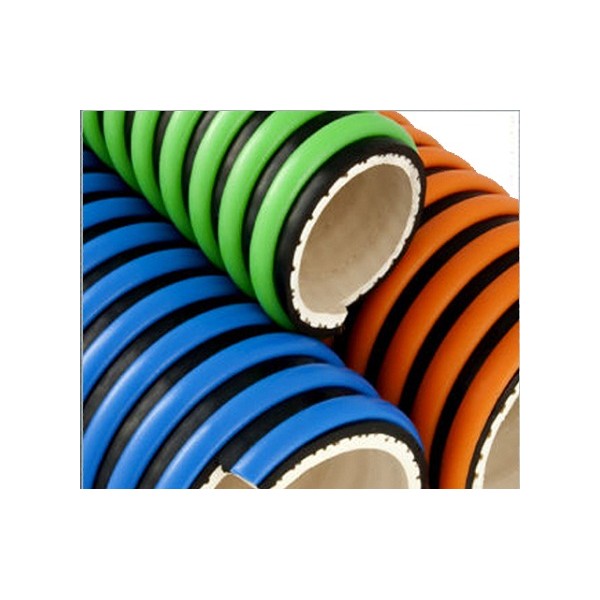

Hose of high quality, formed by a layer of EPDM. White, with textile reinforcement and another layer of EPDM. All of it covered externally by a polyethylene spiral.
- ATOXICA, resistant to abrasion, more than other rubber hoses, is more flexible and lighter.
- If it is crushed, it recovers 90%.
- It comes from diameter 32 mm. up to 100 mm.
- The hose complies with FDA and IANESCO 1935 / 2.004 regulations and is free of FTALATOS.
- Recommended temperature 10º to 40ºC.
Applications
Transfer of food liquids.
Wine, beer, oil, milk and low-alcoholic products.
| Interior diameter | Exterior
diameter | Pressure
service | Pressure
break |
| 32mm | 42mm | 8 bar. | 80 bar. |
| 35mm | 44mm | 8 bar. | 80 bar. |
| 40mm | 49mm | 8 bar. | 80 bar. |
| 45mm | 55mm | 8 bar. | 80 bar. |
| 50mm | 64mm | 8 bar. | 130 bar. |
| 55mm | 66mm | 8 bar. | 130 bar. |
| 60mm | 75mm | 6 bar. | 150 bar. |
| 65mm | 79mm | 6 bar. | 150 bar. |
| 70mm | 84mm | 6 bar. | 150 bar. |
| 75mm | 92mm | 6 bar. | 180 bar. |
| 80mm | 93mm | 6 bar. | 180 bar. |
| 90mm | 104mm | 5 bar. | 300 bar. |
| 100mm | 120mm | 5 bar. | 300 bar. |
