PRICE BY METER.

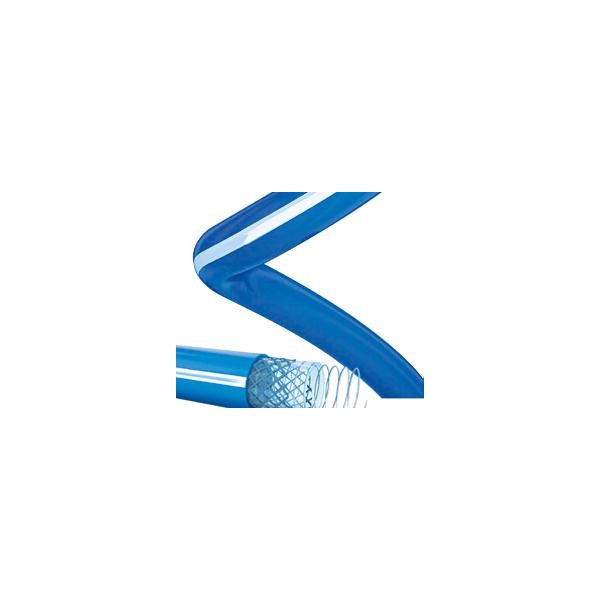

Anoxic hose built on mandrel. Conceived for the aspiration and impulsion of food liquids: wine, beer, milk, oils, etc.
Ideal to resist drag abrasion. Also suitable for suction tasks.
- Maximum aspiration 90%.
- It complies with FDA NORM 177-2600.
- Sterilization: interior with soda (5%) and steam up to 120ºC (maximum 30 minutes).
- Inner tube: Synthetic rubber.
- NBR innocuous white.
- Reinforcement: Synthetic braiding of great tenacity.
- Steel spiral
- Outer sheath: Blue NBR synthetic rubber resistant to abrasion and weathering.
- Surface with a thin cloth impression.
- Temperature range -30ºC to + 80ºC maximum temperature peak 120º C.
| Interior diameter | Exterior
diameter | Pressure
service | Pressure
break |
| 25mm | 36mm | 10 bar. | 30 bar. |
| 30mm | 42mm | 10 bar. | 30 bar. |
| 35mm | 49mm | 10 bar. | 30 bar. |
| 40mm | 54mm | 10 bar. | 30 bar. |
| 45mm | 59mm | 10 bar. | 30 bar. |
| 50mm | 65mm | 10 bar. | 30 bar. |
| 60mm | 76mm | 10 bar. | 30 bar. |
| 80mm | 98mm | 10 bar. | 30 bar. |
| 90mm | 106mm | 10 bar. | 30 bar. |
| 102mm | 118mm | 10 bar. | 30 bar. |
