VIAGOM HOSE INTERIOR DIAMETER 45 EXTERIOR 59 mm

1 597,20 €

Add to cart



IVA incluido

3 194,40 €

-50%

MANGOM045

Reduced price!

PRICE FOR FULL ROLL OF 40 METERS.

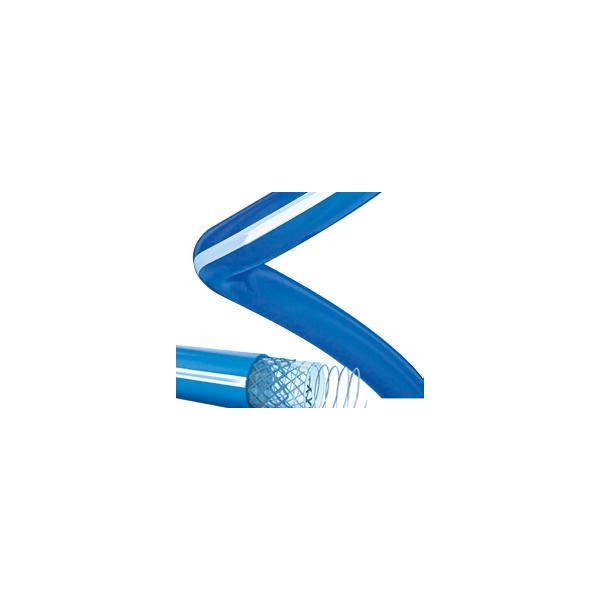

Anoxic hose built on mandrel. Conceived for the aspiration and impulsion of food liquids: wine, beer, milk, oils, etc.

Ideal to resist drag abrasion. Also suitable for suction tasks.

  • Maximum aspiration 90%.
  • It complies with FDA NORM 177-2600.
  • Sterilization: interior with soda (5%) and steam up to 120ºC (maximum 30 minutes).
  • Inner tube: Synthetic rubber.
  • NBR innocuous white.
  • Reinforcement: Synthetic braiding of great tenacity.
  • Steel spiral
  • Outer sheath: Blue NBR synthetic rubber resistant to abrasion and weathering.
  • Surface with a thin cloth impression.
  • Temperature range -30ºC to + 80ºC maximum temperature peak 120º C.

Interior diameterExterior
diameter
Pressure
service
Pressure
break
Roll length
25mm36mm10 bar.30 bar.40 meters
30mm42mm10 bar.30 bar.40 meters
35mm49mm10 bar.30 bar.40 meters
40mm54mm10 bar.30 bar.40 meters
45mm59mm10 bar.30 bar.40 meters
50mm65mm10 bar.30 bar.40 meters
60mm76mm10 bar.30 bar.40 meters
80mm98mm10 bar.30 bar.25 meters
90mm106mm10 bar.30 bar.25 meters
102mm118mm10 bar.30 bar.25 meters
