PRICE BY METER.

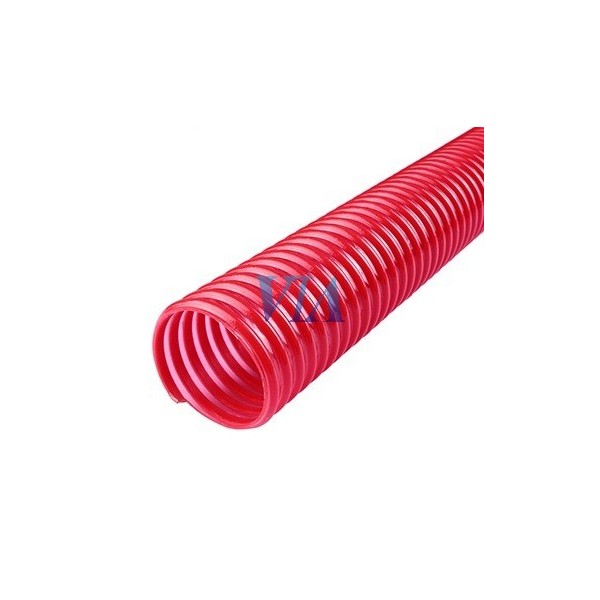

Hose manufactured by extrusion of vinyl compounds, according to UNE standard in ISO 3994 transparent violet glass color with red spiral.
- Hose reinforced inside by a rigid spiral virtually non-deformable and anti-shock.
- The spiral is covered with flexible and transparent food grade material.
- Smooth interior to prevent sediment formation and facilitate sterilization.
- Resists atmospheric agents and various chemical products.
- The recommended temperature of use is between -10ºC and 40ºC.
- Applications: Transfer of wine, food products.
| Interior diameter | Exterior diameter | Pressure
service | Pressure
break |
| 40mm | 49mm | 11 bar. | 30 bar. |
| 45mm | 54mm | 11 bar. | 30 bar. |
| 50mm | 60mm | 10 bar. | 25 bar. |
| 60mm | 70mm | 9 bar. | 25 bar. |
| 70mm | 82mm | 8 bar. | 23 bar. |
| 75mm | 84mm | 8 bar. | 23 bar. |
| 80mm | 90mm | 7 bar. | 20 bar. |
| 90mm | 103mm | 7 bar. | 20 bar. |
| 100mm | 114mm | 6 bar. | 18 bar. |
| 125mm | 145mm | 4 bar. | 14 bar. |
| 150mm | 174mm | 4 bar. | 14 bar. |
