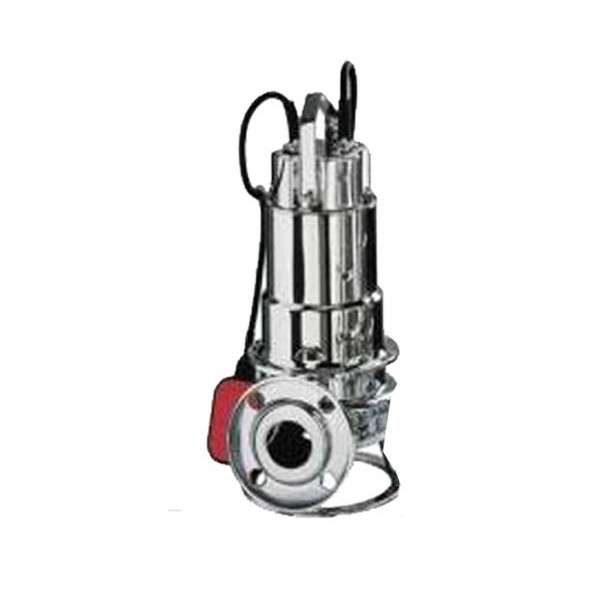

Submersible pump for the extraction of liquids from the bottom of the tank (it must be taken into account that the support of the pump avoids the total emptying of the tank).
Manufactured with AISI 304 stainless steel.
Designed for evacuation of liquids with filamentous contents. Suitable for use in water loaded with solids with a maximum diameter of 50 mm.
Benefits
- Maximum immersion: 10 m.
- Max. Temperature of the vehiculated liquid: 50ºC.
- Maximum passage of solids: 50 mm.
- MATERIALS: Drive body, impeller, housing and motor cover: AISI 304 stainless steel.
- Motor shaft: AISI 303 stainless steel.
- Mechanical seal: Double mechanical seal in oil chamber.
- Superior: Coal / Ceramic / NBR.
- Cable: 10 m with Schuko type plug.
- Single phase and three phase available electrical current.
| Model | C.V | Flow
(Minimum) | Flow
(Maximum) | Height
(Maximum) |
| Dw vox 75 | 0,8 | 6.000 ltrs/h | 24.000 m | 63 m |
| Dw vox 100 | 1 | 30.000 ltrs/h | 30.000 m | 79 m |
| Dw vox 150 | 1,5 | 36.000 ltrs/h | 36.000 m | 102 m |
| Dw vox 200 | 2 | 42.000 ltrs/h | 42.000 ltrs/h | 125 m
|
