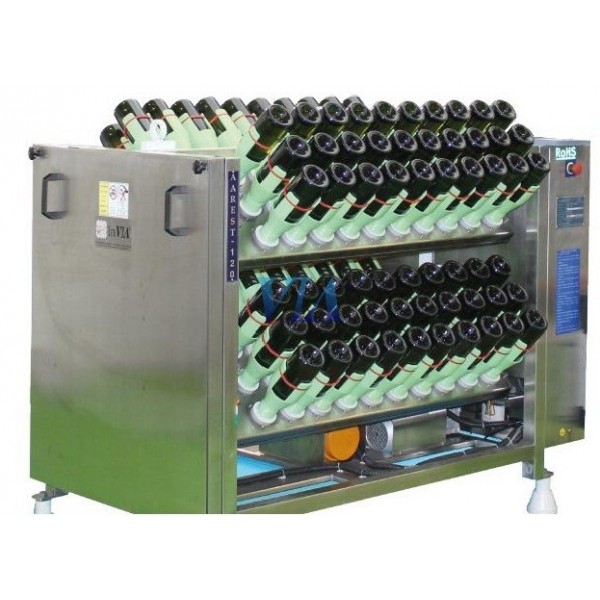

CLARIFY MACHINE IN AUTOMATIC BOTTLE INOX MODEL

Compact machine with simple operation Easy loading and unloading operation Visible process that facilitates inspection tasks

Programming based on work cycles Possibility of manual tests Optional: acrylic material cover

Programmable microprocessor via keypad with software that supports up to 300 inputs Automatic bottle tilt motor with a range of 0 to 90 ͦ in increments of 1 ͦ

Programmable automatic rotation. Rotation can be done in both directions 360 ajustable Adjustable rotation speed Depending on the process, the operator can determine the required rotation speed by means of a current variator (1 - 8 rpm)

Vibration adjustable in three parameters: Time (1 - 99 minutes in 1 minute increments)

Frequency (0 - 2800 vibrations per minute) Oscillation amplitude (0.001 ”to 0.012”).

Machine Operation Description

• Power on the machine
• Ensure the machine in Auto mod
• Press home (i.e. 45° ) position pushbutto
• Load the bottle
• Press Cycle start push button. Machine detects 0° and Starts Cycle as per PLC program
• Tower light blinks green while cycle Star
• Alarm buzzer indicates completion of cycle (90° ) and tower light off
• To off load bottles, Press Home Position
• In case of Emergency Pressed and release during Cycle, Cycle will continue from where it was stopped.

Programmable Micro Processor Controller Feather key pad Programmable Software base controller. Controller software Up to 300 commands entry. Automatic powered bottle tilt rang Between 0 and 90 degree from horizontal plane with an angular increment from 1 to 90 degrees. Programmable automatic powered bottle rotatio Clock wise/ counter clock wise in range between 1 to 360 degrees. Adjustable vibration frequency As per requirement of process, Operator can adjust required vibration through A C Frequency Drive pot from 0 RPM to 2800 RPM Adjustable Vibrations As per requirement of Process, Operator can adjust required vibration through A C Frequency Drive pot from 0.001” to 0.012” Adjustable Vibration time frame In range from 1 minute to 99 minute/each step Rotation Adjustable speed As per requirement of process, Operator can adjust required vibration through A C Frequency Drive pot from in range from 1 to 8 RPM Micro Processor controller have push button fo On Penal surface –push button for

1. Cycle start.
2. Emergency stop ( machine front and back side).
3. Cycle sto 2. Cycle start 3. Manual/Auto mod 3. Cycle stop 4. Home Position ( Bottle Load/Off Load).
4. Auto/manual mode.
5. (for Manual test mode) Rotation motor test (forward/reverse).
6. Vibration motor on-off actuator.
7. Tilting motor test (up/down) 6 Rotation motor- actuator-two position (forward/reverse).
8. Vibration motor test (on/off) 7 Tilting motor – actuator- two position (up/down).
9. Page up (screen page up) 8 Home position.
10. Page down (screen page down) 9 Vibration Adjustable pot.
11. Set step up (for cycle setting).
12. Set step down (for cycle setting).
13. Enter ( final value save).
14. 2 keys for up and 2 keys for dow.
