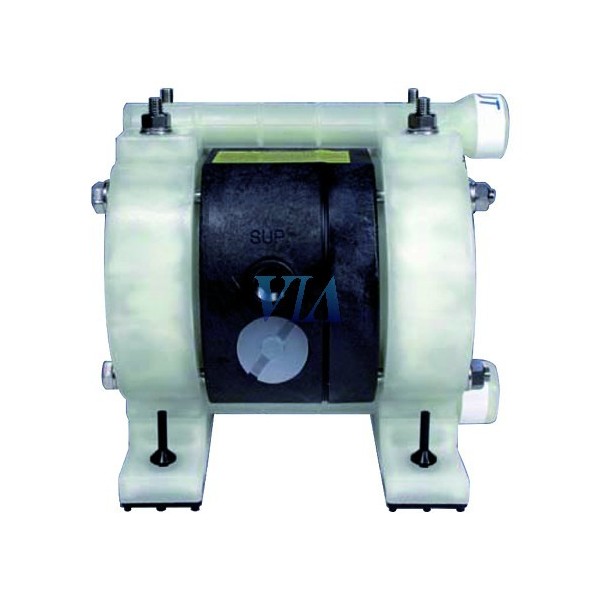

PNEUMATIC PUMP NDP 05 FPT WITH REGULATOR FILTER

Made of polypropylene.

features

• Dimensions: 156 mm wide x 152 mm high.
• Maximum cycles per minute: 400.
• Maximum dry suction height: 1.5 m (5 feet).
• Net weight: 1.36 Kg.
• Shipping weight: 1.81 Kg.

Connections

• Suction and discharge: Female thread 1/4 "BSPT (5 mm).
• Air inlet (including ball valve): Female thread 1/4 "BSPT (5 mm).
• Air exhaust (internal silencer): 3/8 "female thread.
• BSPT (10 mm).

Maximum liquid temperature

• With Teflon® membrane (PTFE).
• Pump material Temperature.
• Polypropylene (PPG) 82 ° C (180 ° F).
• Kynar® (PVDF) 100 ° C (212 ° F).
• Conductive acetal 82 ° C (180 ° F).
• Aluminum (ADC-12) 100 ° C (212 ° F).
• Stainless steel (316) 100 ° C (212 ° F).

Air feed pressure

• 1.4 - 7 bar (20 - 100 PSI).

Volume of discharge per cycle

• 29 cc (0, 078 American gallons).
