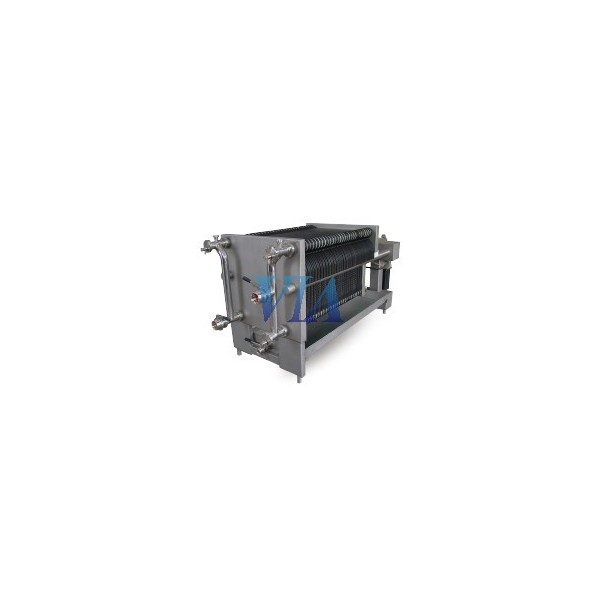

STAINLESS STEEL PLATE FILTERS 600X600 100 PLATES

Made entirely of stainless steel. It is mounted on wheels and provided with a drip collection tray. The filter unit is closed by means of stainless steel screws located in the center. The plates (400x400 mm) are made of Polypropylene for food use or in Noryl, Moplen or AISI 316 stainless steel. The filter is also provided with pressure gauges, valves and sight glass for the liquid.

MAIN FEATURES

Production for 100 plates: 26,800 Lt / H.
Dimensions: 3500x850x1410 mm
AISI 304 stainless steel structure.
Fixed and mobile plate width 60 mm.
Manual hydraulic closure, pressure 300 bar, piston 090mm, with safety valves.
AISI 304 stainless steel outer tube.
Sight glass for liquid inlet and outlet.
Butterfly valve in inlet and outlet.
DIN Ø60mm fittings Drop collector tank in AISI 304 stainless steel.
Discharge into collector tank with Din Ø25mm butterfly valve.

Available in other sizes 40, 60, 80, 100 and 150.
