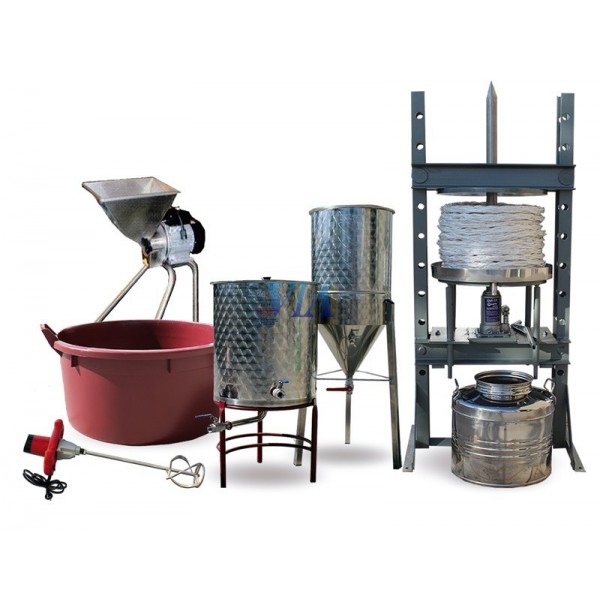

COMPLETE EQUIPMENT TO MAKE TRADITIONAL OLIVE OIL

The pack consists of:

• 1 crushing mill.

Simple operation machine, to carry out the milling of the olive or similar products.

Steel tripod mounted.

Stainless steel hopper measures 445 x 310 x 225 mm.

2.5 hp single phase electric motor.

Power supply 220v 50 hz.

Production capacity 250 - 300 kg / h approx.

Weight 30 kg.

• 1 plastic bowl of 80 ltrs for the collection and milkshake of olive paste.
• 1 Steel Whip Arm.
• 1 hydraulic press of capachos.

                  Production of +/- 2.5 kg per capacho. The machine is supplied with 12 units (up to 36 shells can be placed).

                                Pressing time: approximately 2 hours.

                                Plate and shell diameter: 40 cm.

                                Hydraulic pressure jack 10 tn.

                                Enameled Steel Manufacturing.

                                Measures: 70 x 60 x 150 cm.

                                Weight approximate: 100 kg.

• 1 stainless steel pitcher 18/10 of 50 ltrs for collecting oil from the press plate.

For the decantation and storage of oil:

• 1 stainless steel tank AISI 304, conical bottom at 60º capacity 100 ltrs.
• 1 stainless steel tank AISI 304, capacity 100 ltrs with conical bottom, mounted on a tripod with two outlets equipped with two stainless steel valves.
