AISI 304 stainless steel structure.

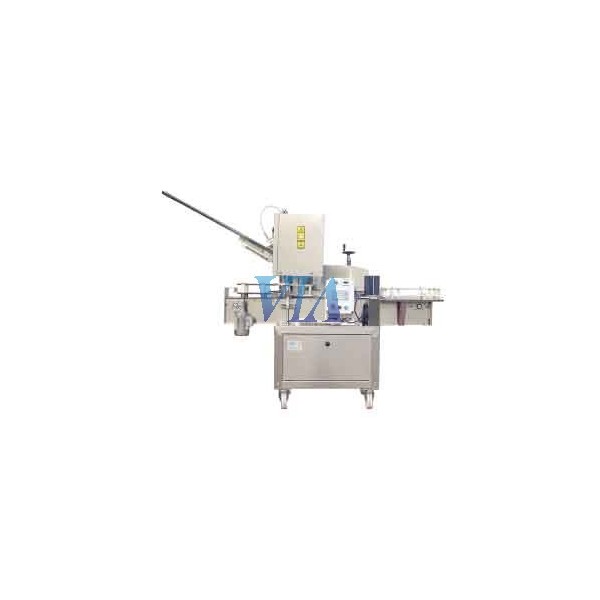

Machine equipped with inlet bottle spacer, capsule dispenser, thermal head and labeling station.
Self-adhesive labels on rolled tape.
Internal diameter of the spool from 65mm to 75mm.
Maximum diameter of the external spool 200 mm.
Maximum belt height 140 mm.
Possibility of using wraparound labels.
Rectangular labels are preferred.
Possibility of applying label and back label that can be placed on the same reel or on two different reels, adjustable in height separately.
Bottle diameter up to 85 mm.
Bottle height up to 375 mm.
Hourly production around 850 bottles.
ELECTRIC DRIVE
Single phase 230 volts, 50 Hz.
PNEUMATIC DRIVE
Air consumption (6 bar): 8.2 Nl / min.
OPTIONAL
Stamping mechanism.
Special devices for bottles.
Sensor for label on bottle already labeled.
Inverter for 110 volt, 60 Hz power supply.
ADDITIONAL ACCESSORIES
Stamping device: € 1,555 + VAT.
