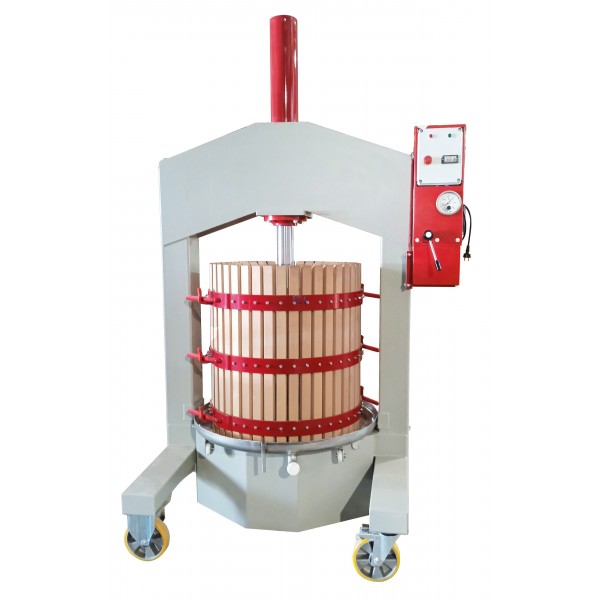

Reinforced hydraulic press, electric motor operation. Applied in the extraction of must from fermented red grapes and delicate white grape wines.
It is recommended to use straws to drain the musts and prevent splashing.
- Support structure in varnished steel with high mechanical resistance.
- Double effect piston.
- Pressure plate.
- Wooden cage.
- Trolley with collection tray.
- Pressure gauge with adjustable pressure from 50 to 350 bar.
- Pressure regulator.
- Three position hand cam for movement. Go down - stop - go up.
| Model | External diameter cage | Capacity | Diameter piston |
| C60 | 600 x 750mm | 215 kg | 90 mm |
| C70 | 700 x 800 mm | 330 kg | 110 mm |
| C80 | 800 x 900 mm | 480 kg | 130 mm |
