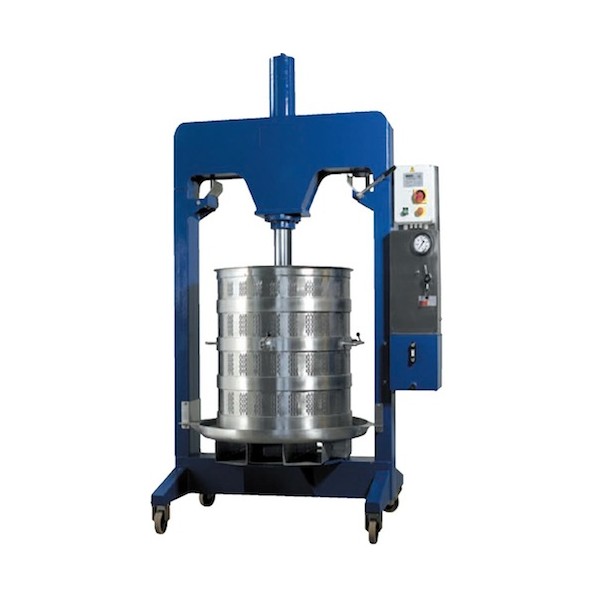

Vertical hydraulic press with reinforced frame, cages with palletizable base or on pallet.
Technical characteristics
- Steel structure varnished with high mechanical resistance.
- Double-effect piston in chromed steel.
- Pressure plate completely coated in stainless steel.
- Hydraulic power unit at two speeds.
- Motor Hp 2 v. 380
- Registered manometer from 50 to 350 Bar (300 for the model 95FL).
- Palletizing tray or trolley with removable stainless steel tray.
- Inox cage aisi 304.
- On request: PLC for the automatic control of times and press cycles.
| Model | Diameter cage | Diameter piston | Dimensions |
| 80FL | 800x900 mm | 90 mm | 1.600x1.000x2.600mm |
| 95FL | 950x1.000 mm | 110mm | 2.000x1.300x2.950mm |
| 130FL | 1.300x1.000 mm | 130mm | 2.500x1.700x3.300mm |
