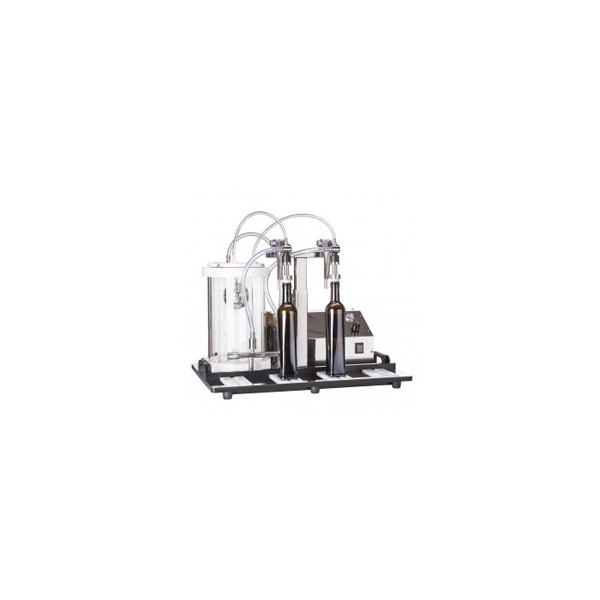

The 2-pipe filler is ideal for bottling wine, oil, beer, spirits, fruit juices and other liquid products.
The liquid is aspirated by the vacuum created by the machine inside the bottles as soon as they are inserted, the filling is carried out continuously, as it does not require the assistance of a pump, the contact of the liquid with mechanical parts is avoided.
The filling level of the bottles is adjustable and, once selected, automatic.
The collection container or tank can be placed up to 4 meters below the machine.
Several accessories also allow you to implement the use of the equipment (see accessories for filler).
Possibility of regulating the speed of filling and the quantity of product per bottle.
Features
- Built entirely in stainless steel, vacuum operation.
- Small built-in motor for induced aspiration.
- No. of pipes: 2.
- Production 300 bot / h approx.
- Power: 120 W.
- Weight: 25 kg.
- Neck diameter from 16 to 28 mm.
- Bottle height: 250 mm to 330 mm.
Data sheet / video demo
