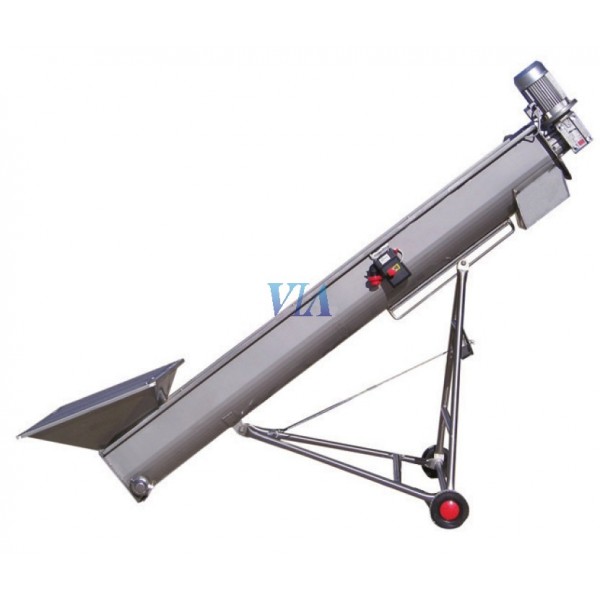

ELEVATOR FOR RECEIPT OF OLIVE El. 2

Stainless steel screw Ø 200 mm L. 3/4 mt.
Stainless steel loading hopper with side connection for liquid recovery.
Removable lid for cleaning and inspection.
Winch system to adjust the discharge height.
Stainless steel trolley.
Three-phase electric motor 380V 50Hz.
Standard electrical system with EC emergency stop.
Length: 4,000mm
Engine HP (kw): 2 (1.5).
Hopper dimensions: 650x720x900 mm.
Loading height: 710/480.
Unloading height: 1,900/2,500 mm.
Capacity: 2 - 10 Ton/h.
Weight: 130kg.
