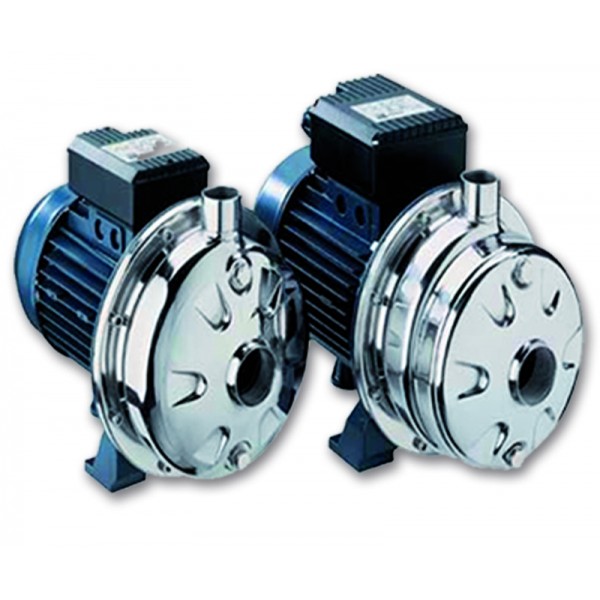

Inox pump model CDX special for transferring clean liquids, Inox turbine.
Pump body, impeller, diffuser and seal holder base in AISI 304 stainless steel, motor housing support in aluminum.
Maximum working pressure of 8 bar.
It is not self-aspiring.
Single phase and three phase available electrical current.
| Model | C.V | Flow
(Maximum) | Height
(Maximum) | Diameter mouth |
| CDX 90/10 | 1 | 7800 LTRS/H | 19 m | 1 1/4"-1" |
| CDX 120/20 | 1 | 9600 LTRS/H | 28 m | 1 1/4"-1" |
| CDX 200/20 | 2 | 15000 LTRS/H | 36 m | 2 1/2"-1" |
* In the case of oil, the yield is approximately half.
