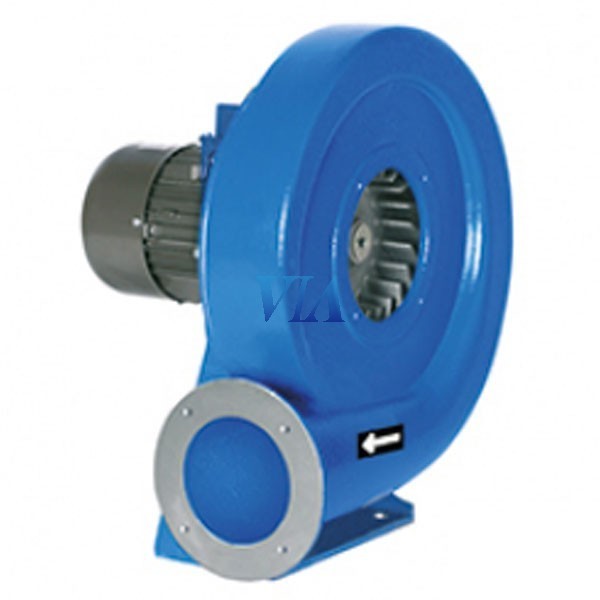

CONSTRUCTIVE FEATURES
• Housing made of cast aluminum.
• Turbine made of cast aluminum.
• Protected against corrosion by polyester resin powder coating.
• Standardized asynchronous squirrel cage motor with IP-55 protection and class F insulation. Standard voltages 230V 50Hz for single-phase motors, 230 / 400V 50Hz for three-phase motors.
• LG270 standard position.
APPLICATIONS
Designed for installation in ducts, they are indicated for:
• Industrial processes, extraction or localized injection.
• Refrigeration of machines, parts cooling.
• Transport of clean or slightly dusty air.
• Maximum continuous working temperature: conveyed air: 130ºC, ambient: 60ºC for three-phase motors and 50ºC for single-phase motors.
