VIA BAG FILTER MODEL V1,5 12.000 LITERS / HOUR

UTILITY IN PRE-FILTRATION, SECOND ROUGH OR CLARIFICATION

• High dirt / turbid / solids holding capacity.
• Wide chemical compatibility
• REGENERABLES BAGS, same cleaning protocol as the one used with absolute microfiltration filters.
• Comply with the FDA regulations for contact with food CFR21.
• It retains both solid and gelatinous (semi-solid) particles.
• Maximum filtration capacity at 12,000 liters / h.
• Maximum working pressure 2,5 bar Maximum washing temperature with water 70ºC.
• Maximum washing temperature with water 70ºC.

APPLICATIONS

• Standard PP Bag: Measurement, Elaboration, Aging, Clarification and Pre-Filtration.
• High Efficiency PP Bag: Filtration - Bottling.

CHARACTERISTICS AND USE

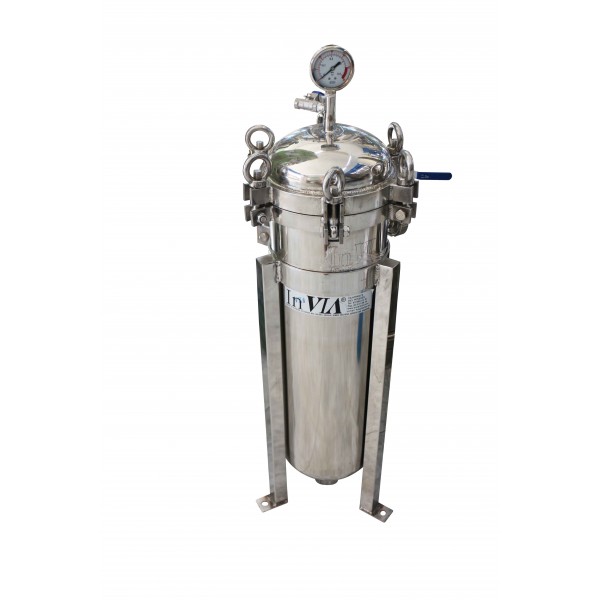

Bell manufactured in Inox 304L designed for filtration with polypropylene bags.

• Cover closure with gasket and Italian Racord 125 clamp.
• Easy to use, mobile and stable equipment.
• Perforated 304L stainless steel basket (3 "standard).
• Purge / take samples of stainless steel 304L for dirty zone with tap of 1/4 ".
• Max Load hydrostatic under operating conditions: 0.1 bar.
• Pressure indication manometer.
• Threads E-S NW25.
