- High capacity to hold dirt / turbid / solids.
- Wide chemical compatibility.
- REGENERABLE BAGS, same cleaning protocol as the one used with the absolute microfiltration filters.
- They comply with FDA regulations for contact with food CFR21.
- Retains both solid and gelatinous (semisolid) particles.
- Maximum filtration capacity at 20,000 liters / h.
- Maximum working pressure 2,5 bars maximum washing temperature with water 70ºC.
- Maximum washing temperature with water 70ºC.
APPLICATIONS
- Standard PP Bag: Mostification, Elaboration, Aging, Clarification and Pre-Filtration.
- High Efficiency PP Bag: Filtration - Bottling.
CHARACTERISTICS AND USE

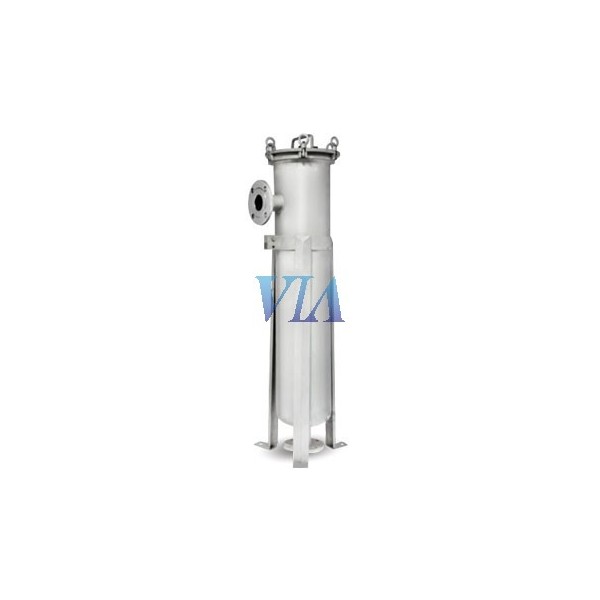

Hood made of Inox 304L designed for filtration with polypropylene bags.
- Lid closure with gasket and Italian Racord 125 clamp.
- Easy to use, mobile and stable equipment.
- Perforated 304L stainless steel basket (3 ”standard).
- Drain / takes samples of stainless steel 304L for dirty area with 1/4 ”tap.
- Max load. hydrostatic under operating conditions: 0.1 bar.
- Pressure indication manometer (optional).
- E-S threads NW40.
Designed for bag filtration system.
a) Consists of stainless steel housing, bag holder and filter bags.
b) Wide range of bag sizes to choose from.
2. complete stainless steel frame
a) Quality 304 or 316L stainless steel material
b) High pressure and high temperature design is available
3 meets gmp requirements
a) Smooth round corner design, no dead space
b) surface is passivation mechanically or sandblast polished
