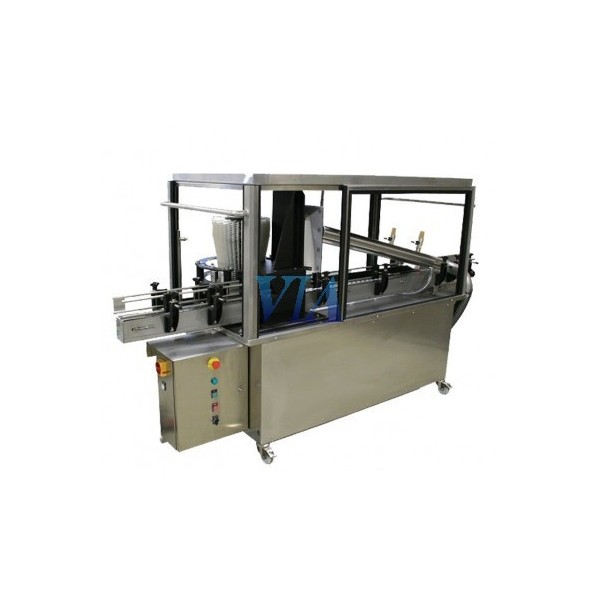

CLEANING - DRYING BOTTLE STATION 500 - 2000 BOTTLES / HOUR OUTSIDE WASHING OUTSIDE WASHING

Complete fully automatic washing and drying station, designed for washing all types of bottles.

The system is based on cleaning the bottles using a 700 mm circular brush that makes them pivot on themselves under the action of the main brush and a lower brush.

Excellent cleaning and drying results thanks to the rotation of the bottles on the conveyor belt.

-Option: brush for the upper part.

This type of drying does not leave traces of humidity so it allows the immediate placement of labels.

CHARACTERISTICS

• Manufactured in stainless steel (AISI 304) and high-density polyethylene.
• Designed to handle all types and sizes of bottles:

• • Bottle.
  • 1/2 bottle.
  • Magnum.
  • Special Bottle.
• Variable speed.
• Adjustable height.
• Swivel casters with lock.
• Small reception desk outlet or direct connection to a turntable or sideboard.
• Sheet steel containers on top of machine for tool storage.
• Perforated stainless steel chain drive for good drainage.
• Weight: 334 Kg.
• Conveyor belt height: from 730 to 1,300 mm.
• Conveyor belt length: 2,000 mm.
• Power: 4.55 kW.
