The regulator with BUS interface to connect it to a computer is designed to measure and regulate the tank temperature. The controllers are equipped with two displays to show the target temperature and the current temperature. The controller has an LED light display that shows the mode of operation: cool, heat, or both.
The temperature adjustment can be done physically on the controller placed in the tank, or from the Software installed on a server (optional). The software allows a quick analysis of the measured data, saving the information of finished fermentations; Likewise, it can be accessed from any device connected to the internet. The controllers can be locked with a code (individual for each controller or general for the installation), preventing unauthorized persons from modifying the programming. The controllers can also be integrated into the Vininfo bus system.
Mounted on a stainless steel plate with a solid hook, making it not strictly necessary to install them permanently (it can be hung in the same tank or close to it). A temperature sensor of the appropriate length (available as an accessory) is attached to the cannula of the tank.

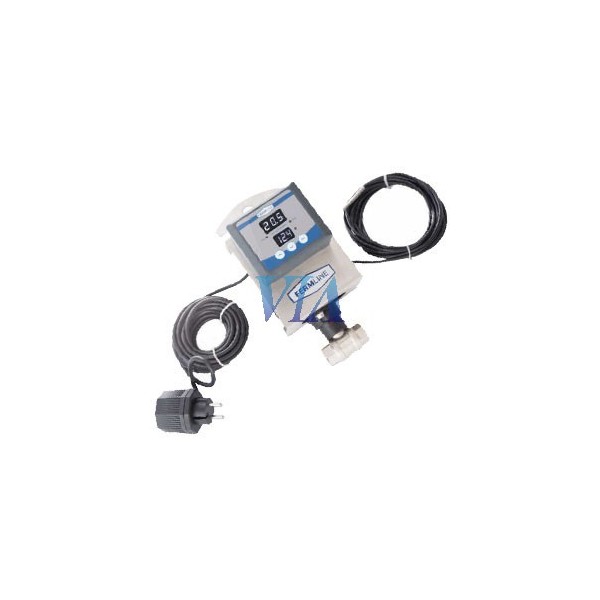

Compact 'all in one' version With ½ "motorized valve, temperature sensor (PT1000, length 5m) and transformer.
It is portable and can be moved from one warehouse to another, since it does not require a special electrical installation, just plug it in. Therefore it is ideal for those who want a temperature control directly in the tank and want to be able to alternate the control in several of them.
| Rango de temperatura | from -9.9 to + 99.9ºC |
| Supply voltage | 24V AC +/-10% |
| Solenoid valve outlet | 24V AC +/-10% |
| Regulation structure | 2- point (hot or cold)
3- point (hot and cold) |
| Protection type (regulator) | IP67 |
| Housing: Material | PC-ABS with high-strength PVC sheets |
| Dimensions | 110x90x40mm |
| Weight | 2,48 kg |
