PRICE BY METER.

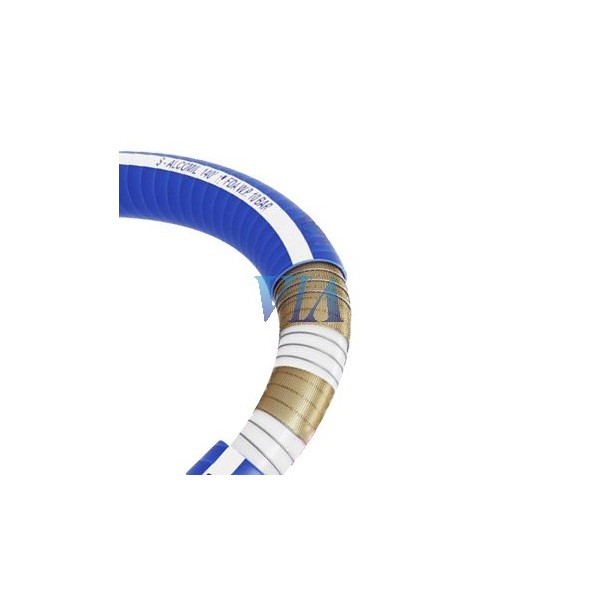

Extremely flexible hose for the success / return of food liquids: milk, wine, beer, cider, fruit juices, drinking water up to 50% alcohol (not suitable for fatty products).
Also designed for equipping additional air circuits in tank trucks (> 140ºC) without phthalates.
Temperature: -30ºC + 100ºC. (Sterilization at 140 ° C for 30 min.)
Norm: According to the EU regulation nº1935 / 2004 and 2023/2006 and FDA 21CFR 177.2600 - PLNE: coef. Between 3 and 20ºC - P.S: 10 bar.
Interior
diameter | Exterior
diameter | Pressure
service | Pressure
break |
| 25mm | 36mm | 11 bar. | 30 bar. |
| 32mm | 44mm | 11 bar. | 30 bar. |
| 40mm | 52mm | 10 bar. | 25 bar. |
| 45mm | 57mm | 9 bar. | 25 bar. |
| 51mm | 64mm | 8 bar. | 23 bar. |
| 60mm | 76mm | 8 bar. | 23 bar. |
| 70mm | 90mm | 7 bar. | 20 bar. |
| 80mm | 96mm | 7 bar. | 20 bar. |
| 102mm | 118mm | 6 bar. | 18 bar. |
